Neo80 Cu – 80% TKL ISO+ANSI Mechanical Aluminum Custom Keyboard Kit

The Neo80 Cu combines premium materials, refined acoustic engineering, and modular flexibility in a stylish 80% layout. Designed for keyboard enthusiasts seeking a high-end custom board that unites performance, aesthetics, and sound.

Key Features

80% Layout (TKL)
The 80% layout offers a well-balanced mix of compactness and functionality – perfect for desk efficiency while saving valuable space.

Premium Materials & Weight

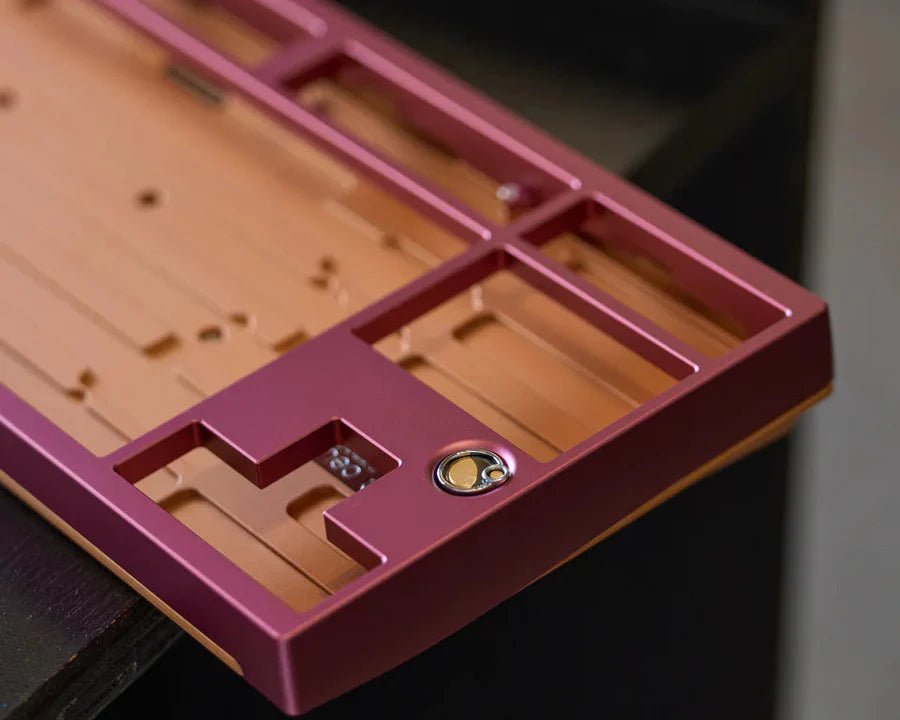

• Top case made from anodized aluminum in multiple color options

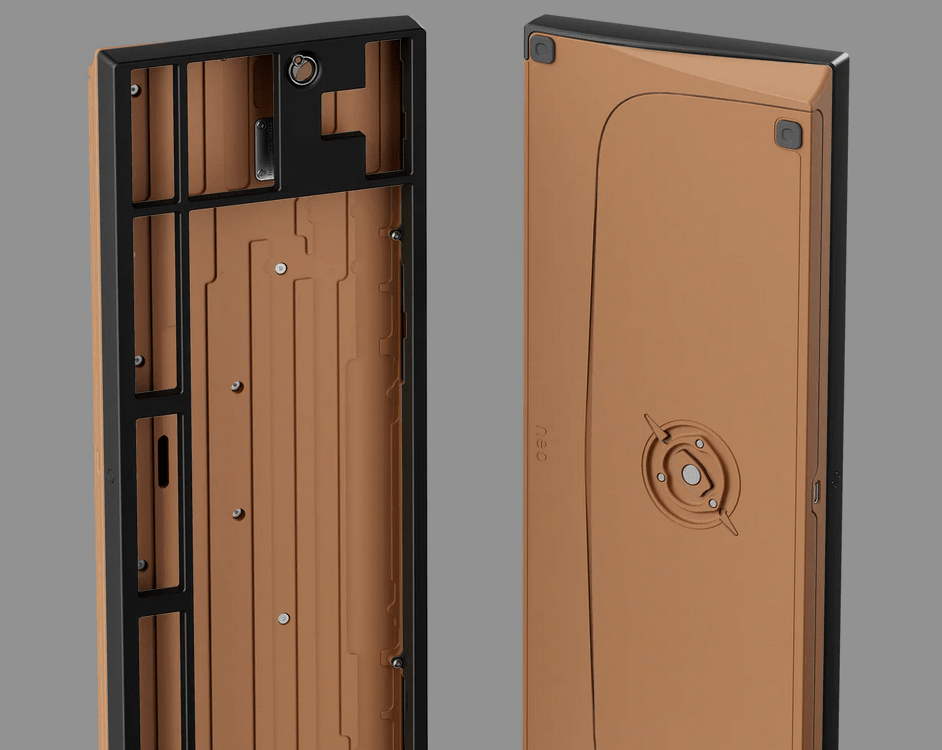

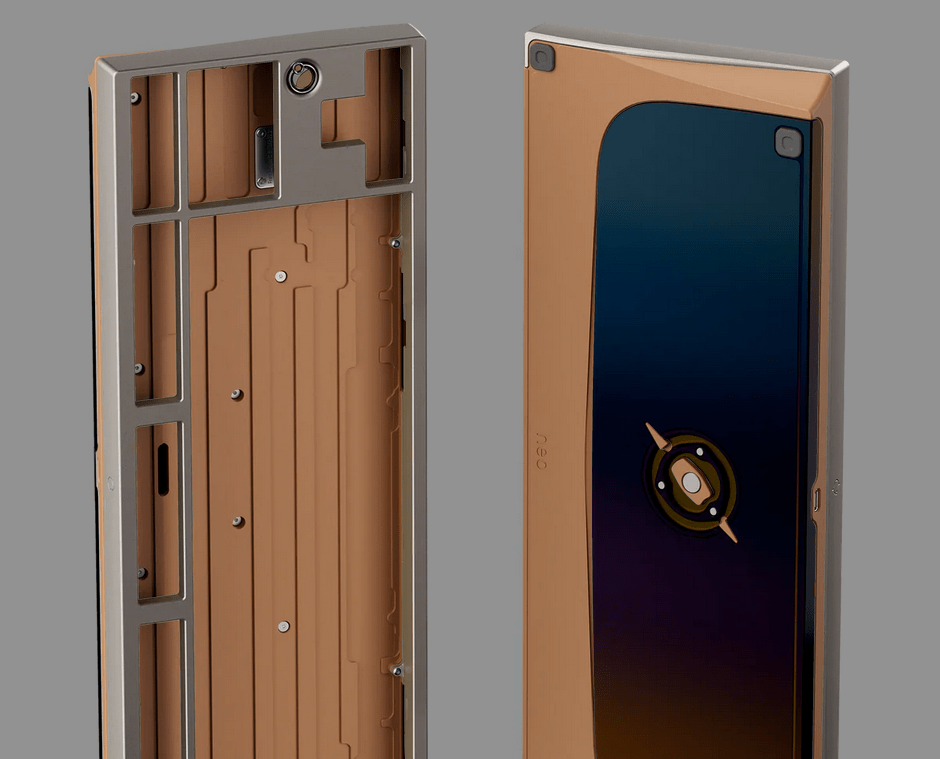

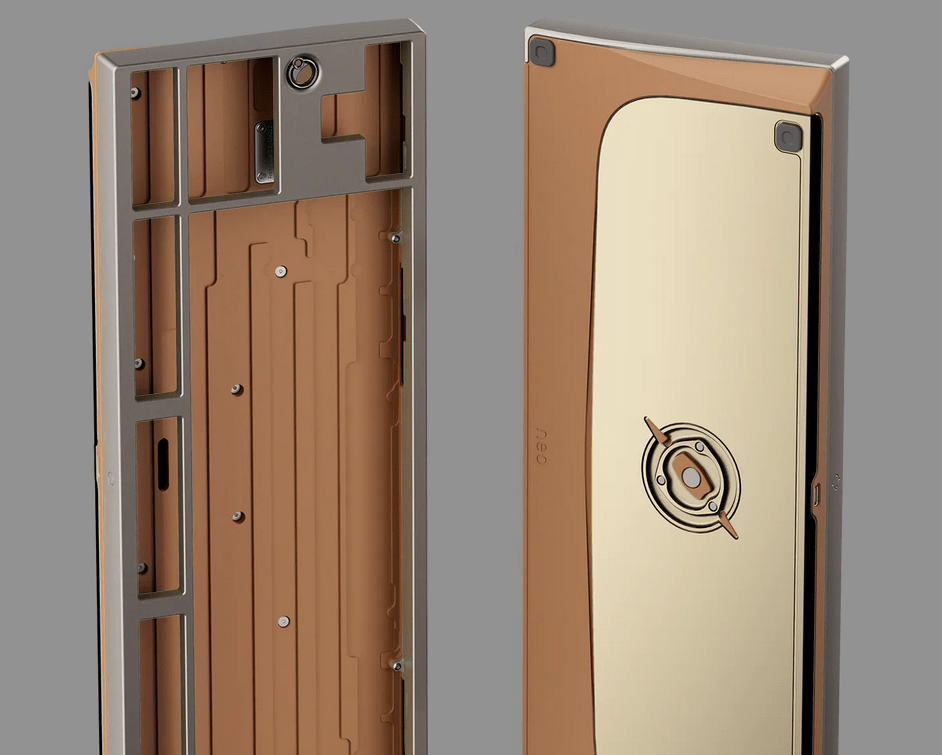

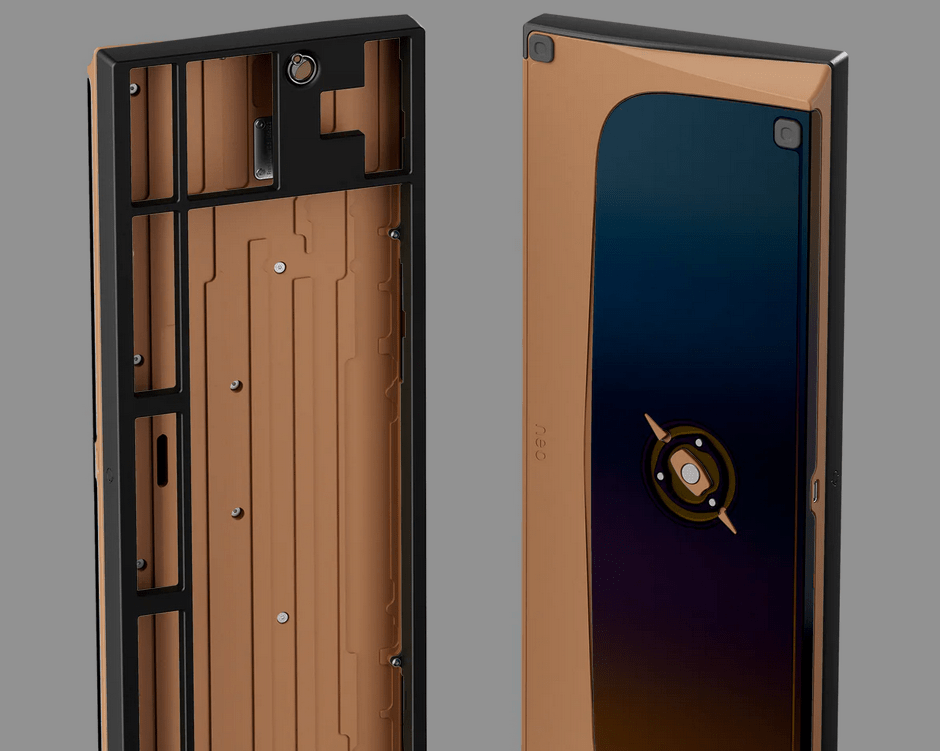

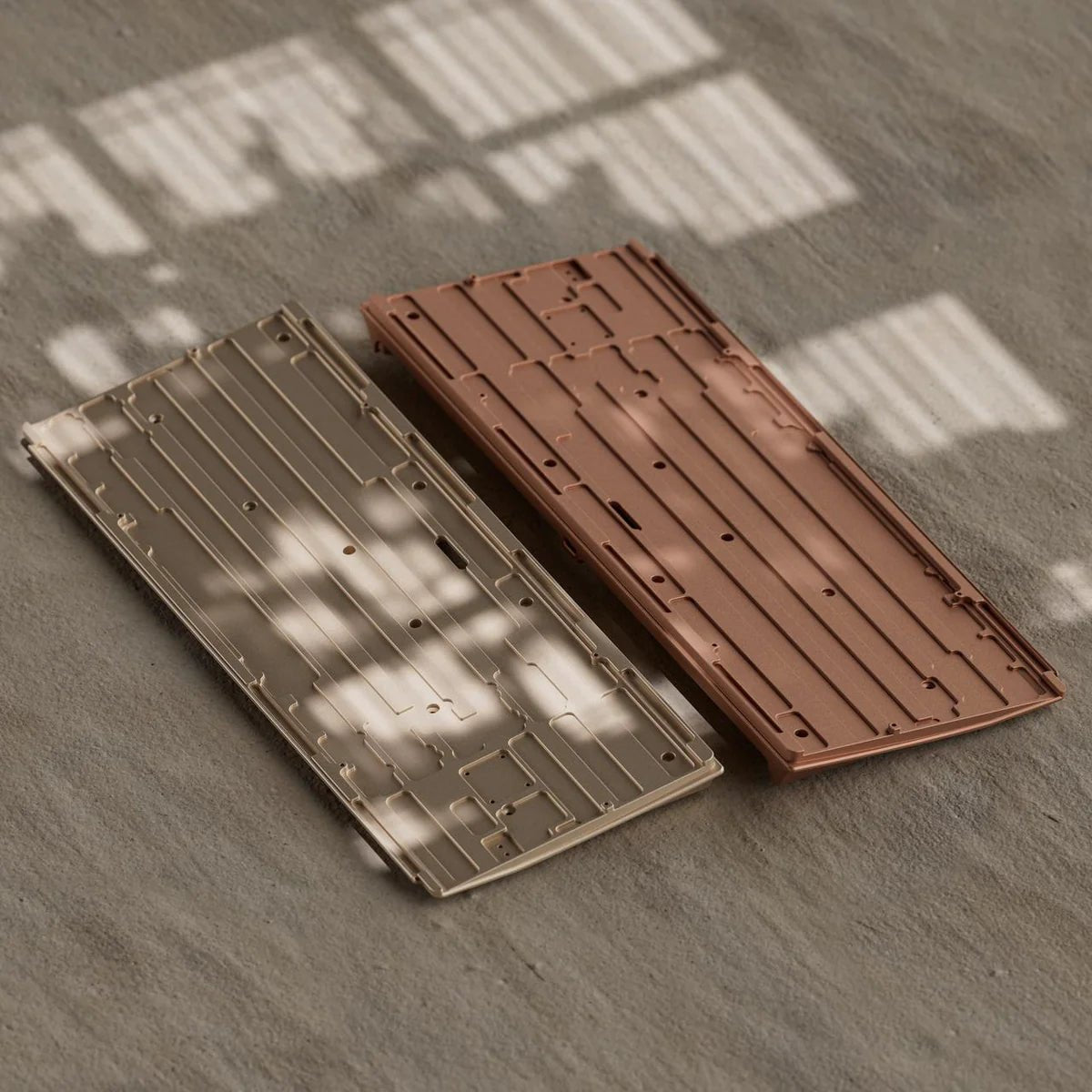

• Bottom case available in copper or brass

• Final build weight: approx. 4.5 kg, providing stability and a solid typing experience

Acoustics & Sound Optimization

• Partitioned Acoustic Chamber Design reduces hollow sound

• Integrated Forcebreak Pads at contact points minimize metallic vibrations and resonance

• No foam required – the design delivers the signature copper bottom sound that fans of the series appreciate

Mounting & Suspension Systems

• Three mounting options: Poron Gasket Mount, Silicone Gasket Mount, and Top Mount

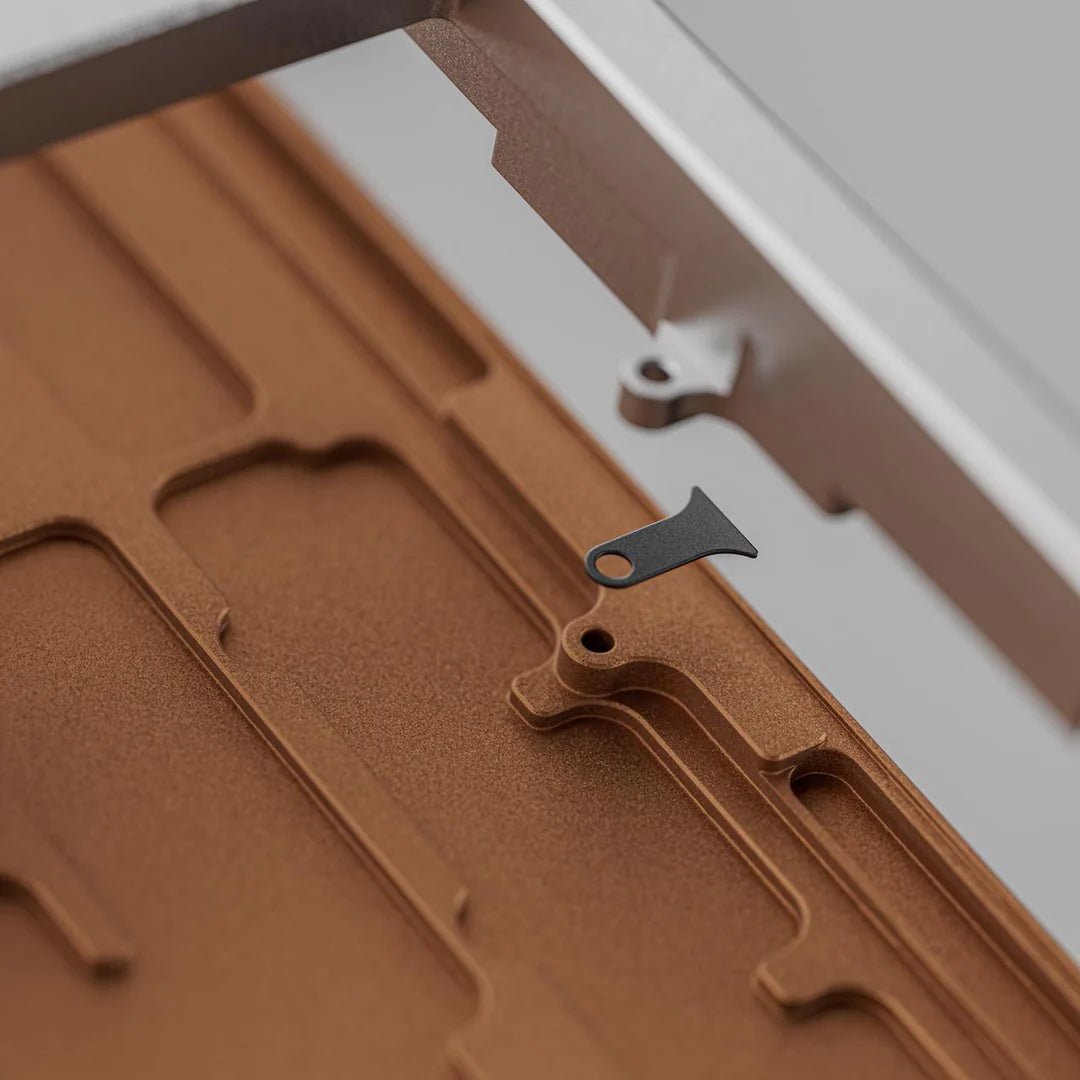

• Poron gaskets sit in specially designed grooves inside the case, allowing installation and replacement without adhesives

Plate Options & Flexibility

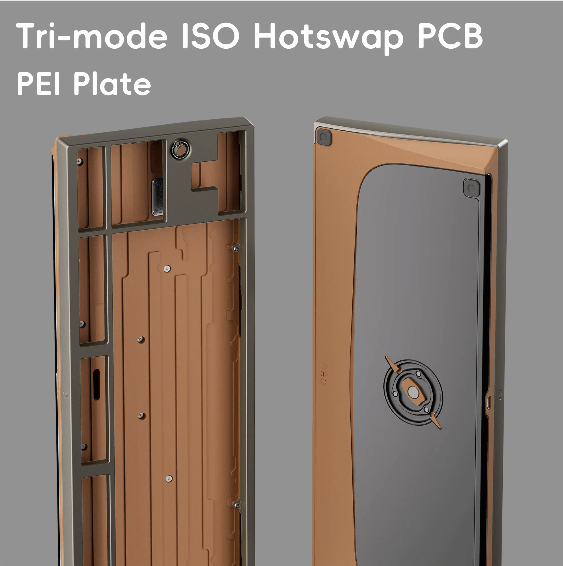

• Options: Plateless, Aluminum (with flex cut & polished chamfer), Carbon Fiber, PP, and PEI – each offering unique sound and feel

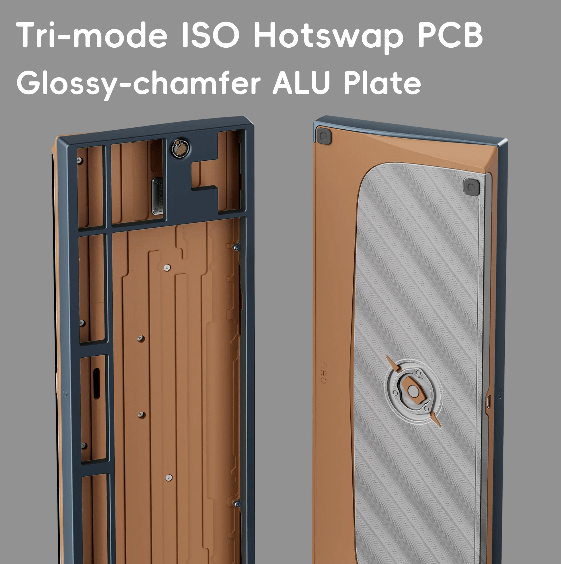

• The aluminum flex plate features integrated spring joints and edge chamfers for reinforcement and acoustic tuning

Electronics & Connectivity

• Available PCBs:

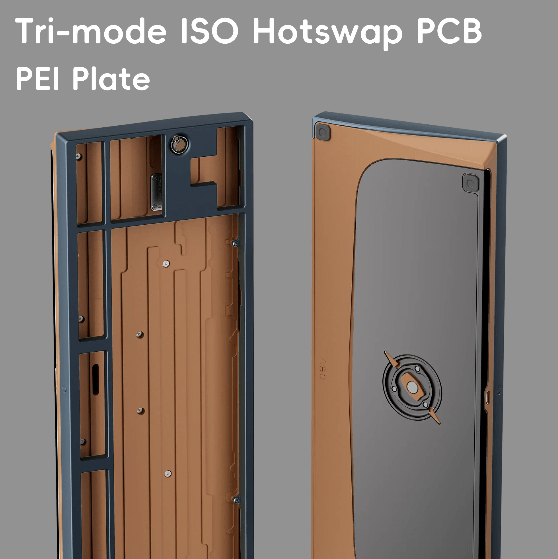

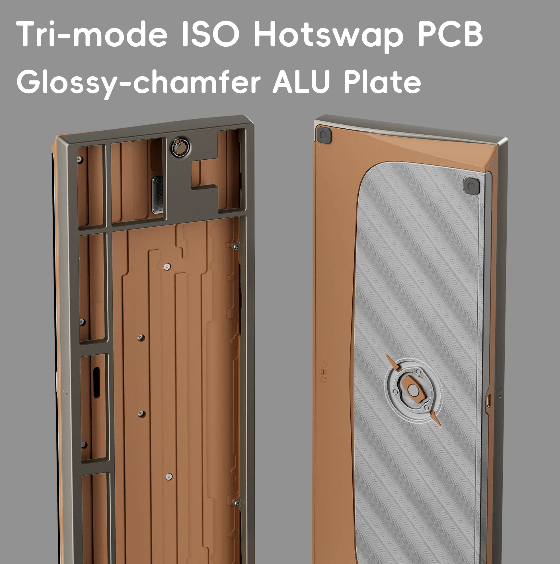

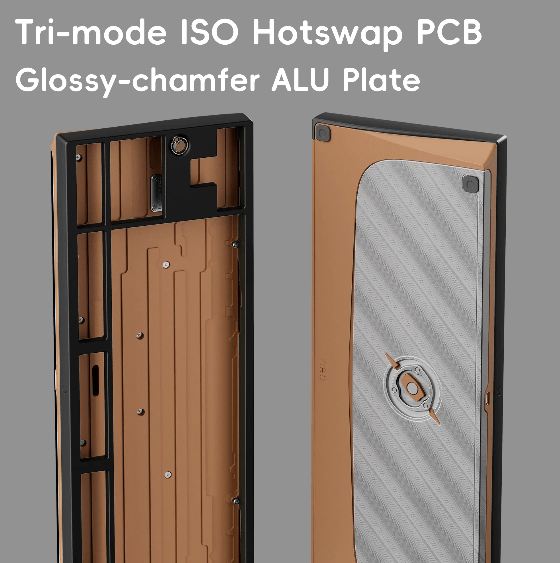

   • Tri-Mode (USB-C, Bluetooth, 2.4 GHz) – Hot-swap, supports both ANSI and ISO layouts
   • Wired Hot-Swap – ANSI layout only
   • Solder PCB with Mill-Max support

• Polling rate: 1000 Hz (USB & 2.4 GHz), 125 Hz (Bluetooth)

• Full NKRO supported

• No per-key RGB lighting – instead, refined accents like the Star Ring Accent Light

Design & Visual Highlights

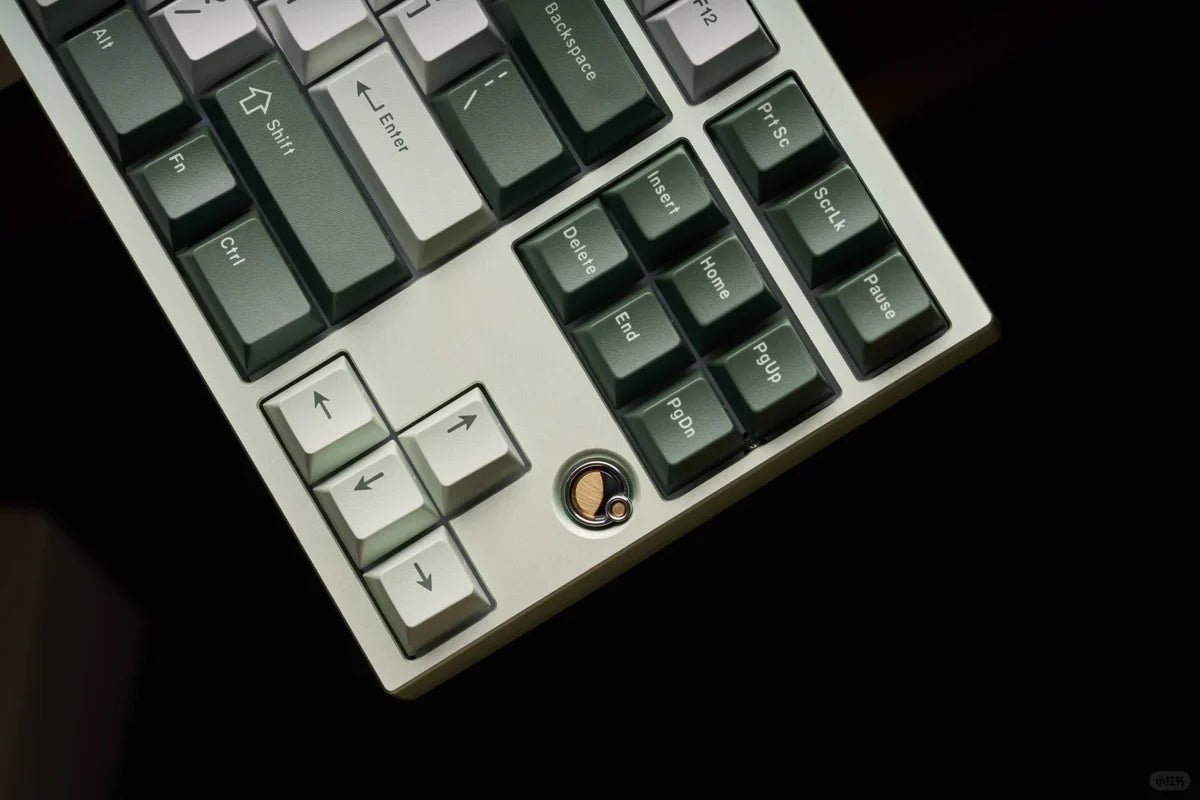

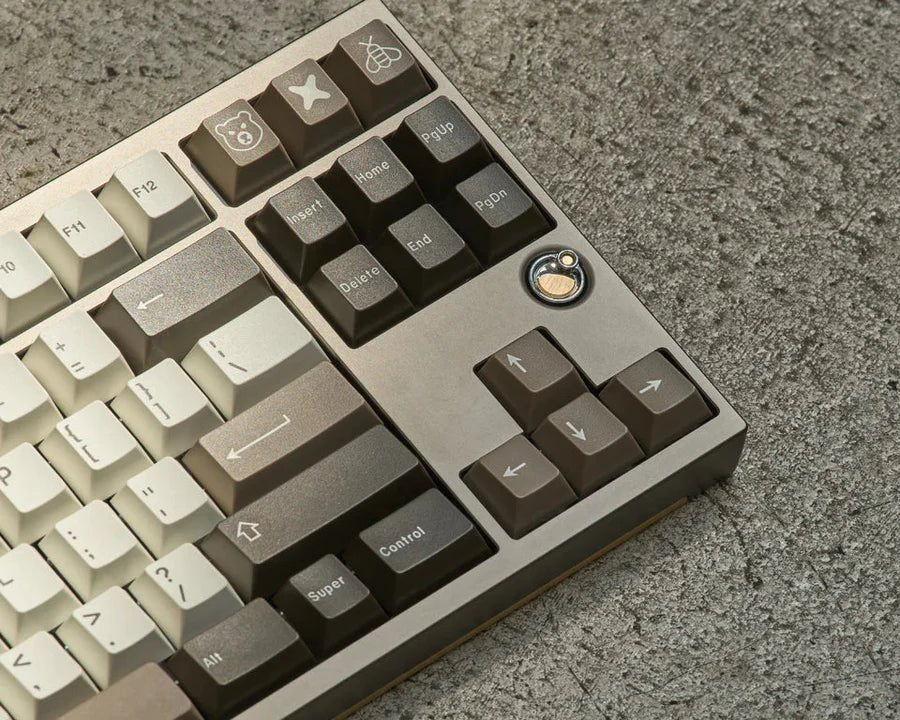

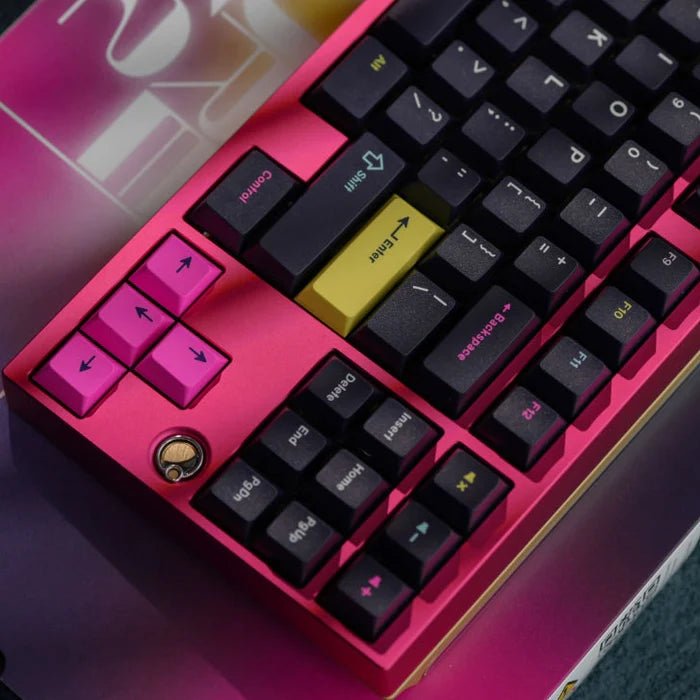

• Star Ring Accent Light on the front: layered aluminum with a mirrored steel ring, creating the impression of a floating planet

• Three-tone design (different material colors/finishes) for a premium look

• Compass-inspired Cu logo centered on the rear weight

Specifications & Dimensions

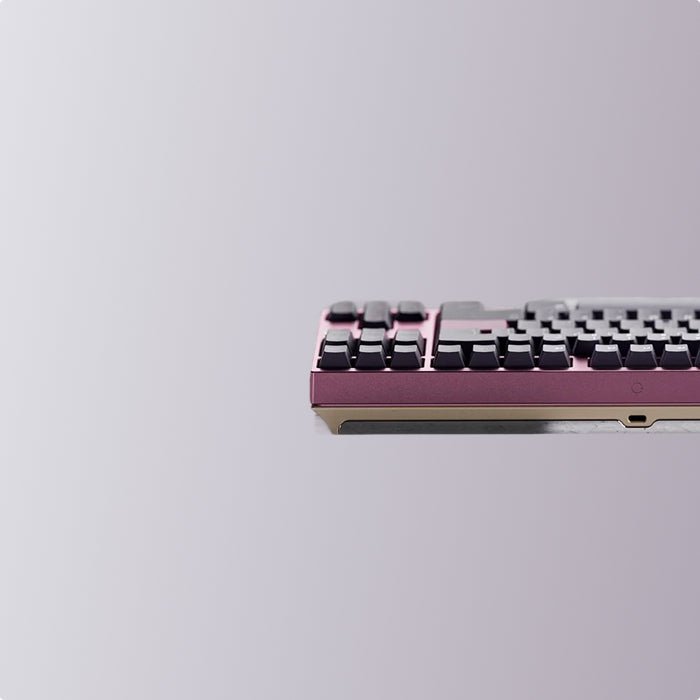

• Typing angle: 8°

• Front height: 18 mm

• Case dimensions: approx. 355.5 × 134 mm

• Supported layouts: WK / WKL

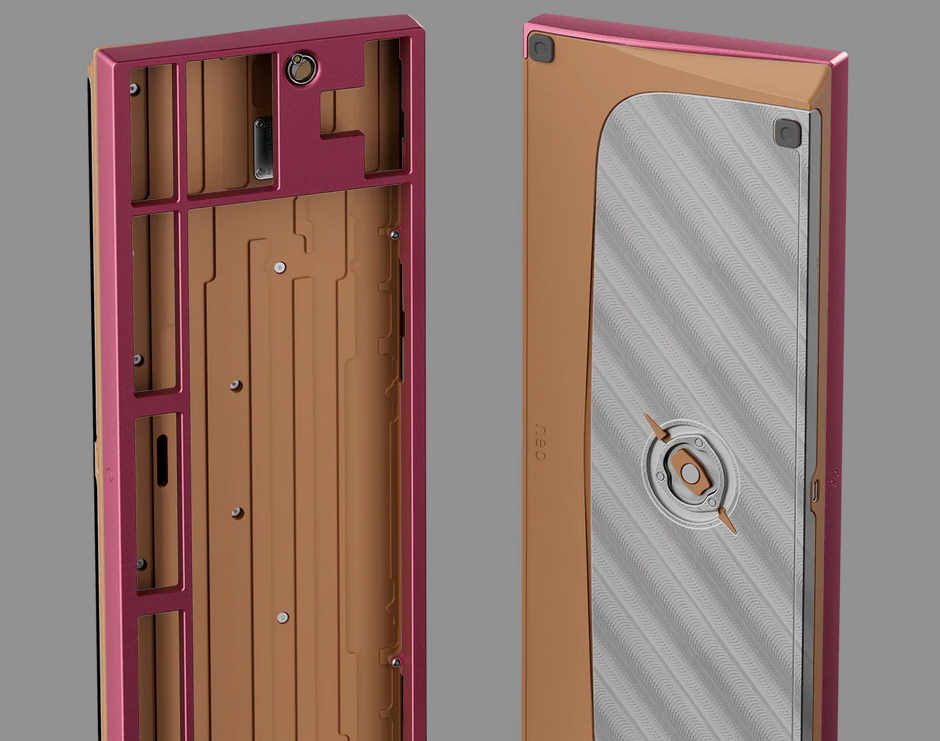

• Top case finishes: Anodized Silver, Slate Blue, Teal, Black, Taupe Grey, Dusty Rose, Jade, Ruby Rose, Mont Blanc

Included in the Kit

• Case with selected PCB + plate combination

• Poron case foam, silicone gaskets, top mount screws, positioning silicone, rubber feet, spare screws

• Tri-Mode versions: two pre-installed 2200 mAh batteries

• Wired & solder versions: filler material (stainless steel or foam) in the battery compartment

• Accessories: Carrying case, keycap & switch puller, screwdriver, clip-in NeoStabilizers, USB-C cable

Benefits & Use Cases

• Sound lovers & typing enthusiasts will appreciate the tuned acoustic dampening concept and the solid copper foundation.

• Modding & tuning fans enjoy the flexibility to choose and optimize mounting styles, plate materials, and PCB options.

• High-end users seeking both function and design: the mix of refined materials, visual accents, and robust construction makes the Neo80 Cu a true statement piece.

• Professional environments (office, studio, long-term use) benefit from reliable connectivity (USB & wireless), NKRO, and rock-solid build quality.
