HMX

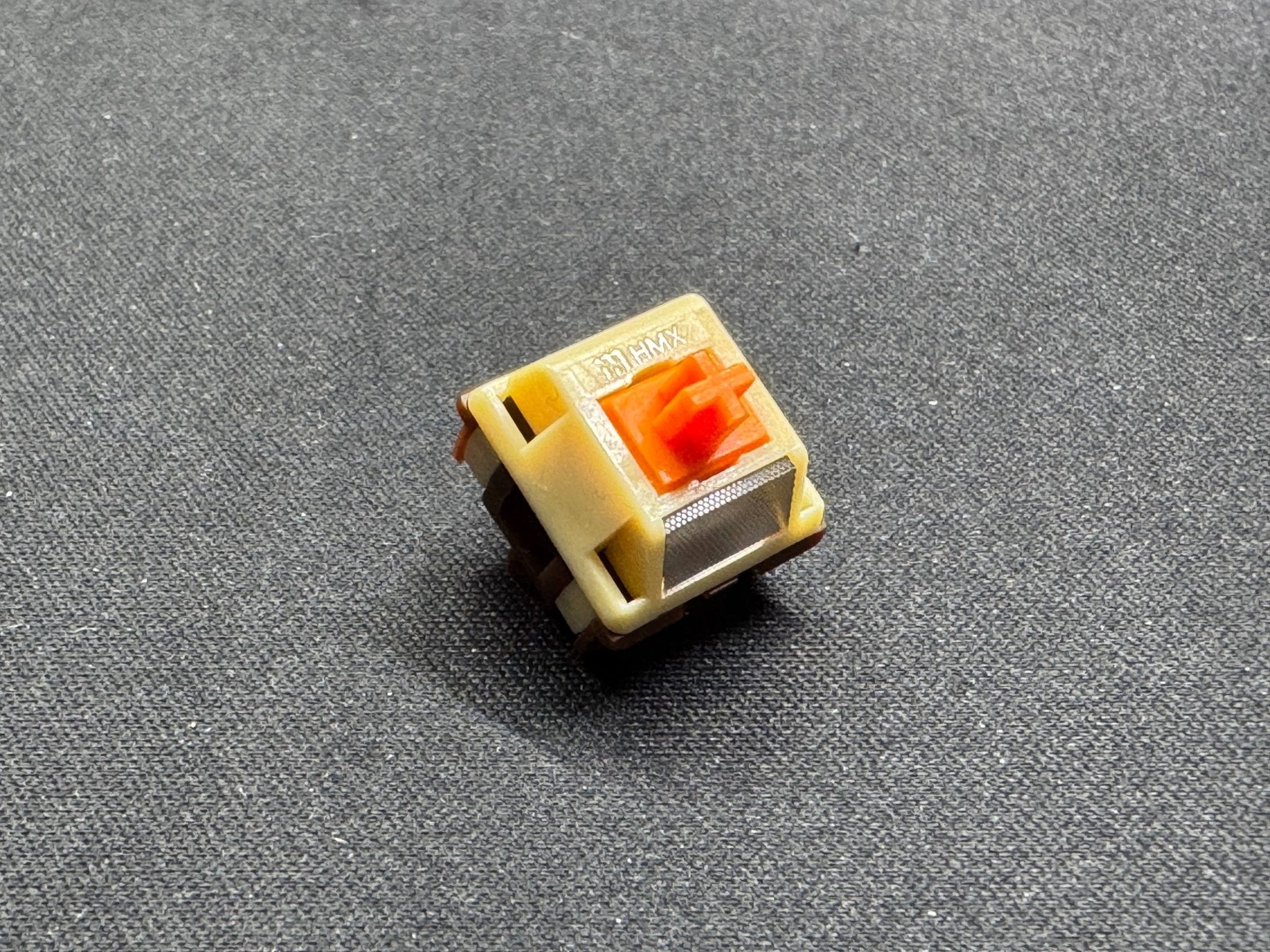

HMX Puppy Tactile Switches (10pcs)
The HMX Puppy are strong, well‑tuned tactile switches with a deep, thocky sound profile. They’re aimed at users who prefer a pronounced but non‑scratchy tactile feedback and a warm overall sound.
The Puppy combines a special H2 stem (POM + PTFE) with a large, spherical stem tip, creating a deep and full bottom‑out sound. The PA22 top housing, a modified version of PA12, further lowers the pitch on rebound and contributes to a pleasant, dampened sound character.
The P4 bottom housing uses as little fiberglass as possible to avoid harsh, clacky overtones. The result is a rounded, warm sound with clear, well‑defined tactility.
Specifications:
- Switch Type: Tactile
- Top Housing Material: PA22 (Modified PA12)
- Bottom Housing Material: P4
- Stem Material: H2 (Spherical Tip)
- Pre Travel: 2.5mm
- Total Travel: 3.5mm
- Spring: 22mm / Single Stage
- Operating Force: 45gf
- Bottom-out Force: 50gf
- Pins: 5-pin
- LED Diffusor: Yes
- Factory Lubed: Yes
