Gateron

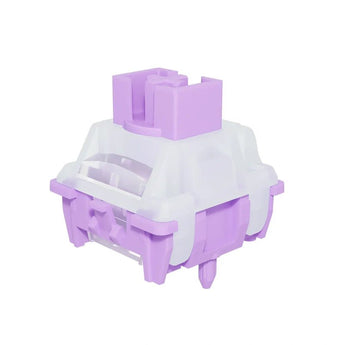

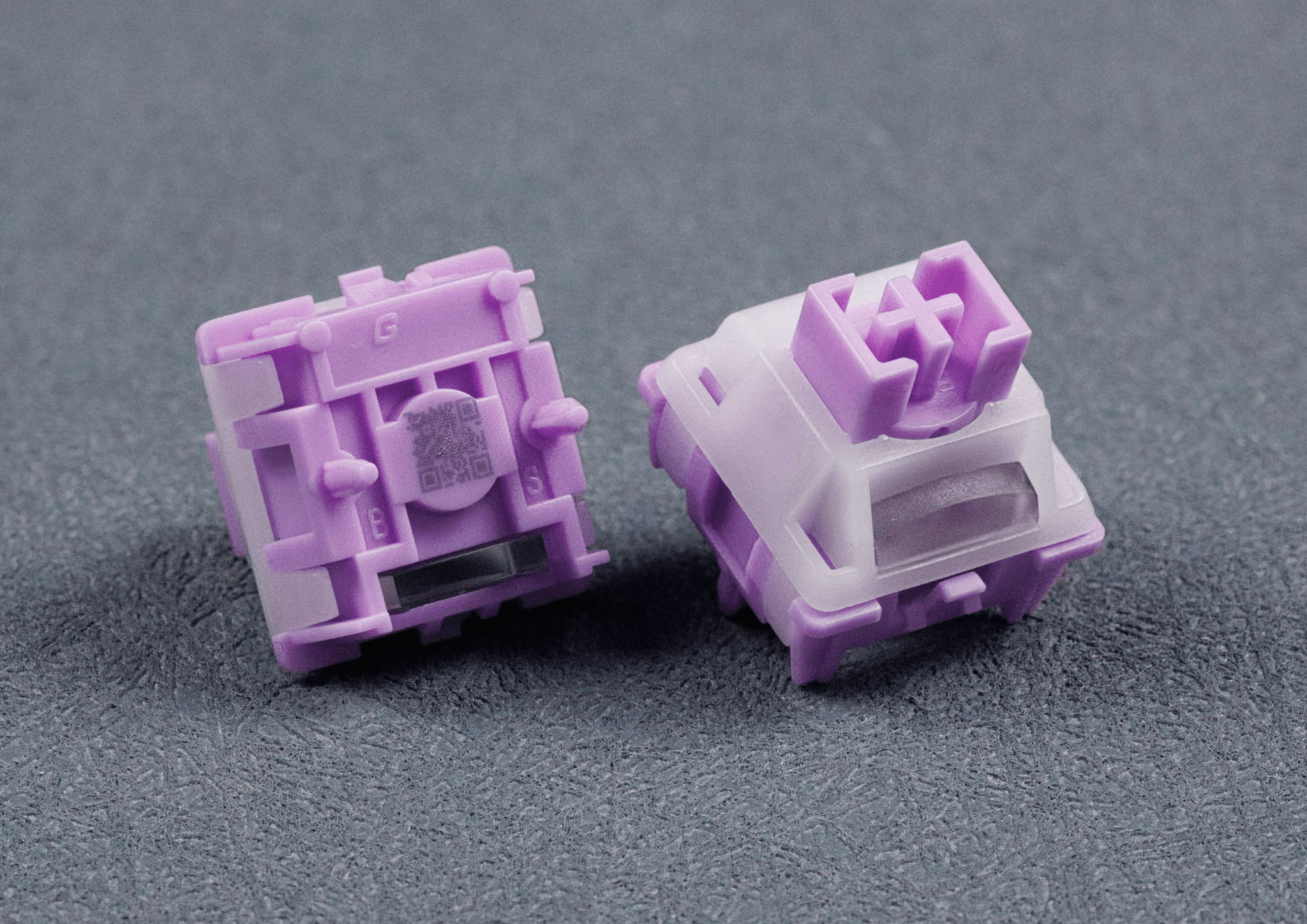

Gateron Orchid Full POM Linear Hall Effect Switches (10pcs)
Pickup available at Krailling
Usually ready in 24 hours
🧲 Gateron Magnetic Orchid Switches – Community-Driven Precision with Hall-Effect Power
The Gateron Orchid Switches are the result of a unique collaboration between Gateron and the keyboard community. As the first Hall-Effect switch co-designed by users, the Orchid combines cutting-edge magnetic technology with a thoughtful design tailored to the needs of gamers and heavy typists.
⭐ Design & Innovation:
- Dual-Rail Anti-Wobble System: Two guide rails ensure maximum stability and eliminate stem wobble.
- DustLock Stem: Sealed against dust to preserve lubrication and ensure long-lasting performance.
- Removable Light Diffuser: Provides uniform, glare-free RGB lighting – choose between a soft glow or focused backlight.
💡 Specifications:
- Type: Hall Effect Linear Switch
- Initial Magnetic Flux: 120Gs
- Bottom Magnetic Flux: 700Gs
- Top Housing: POM
- Bottom Housing: POM
- Stem Material: POM
- Total Travel: 3.5mm
- Actuation Force: 30gf
- Bottom-out Force: –
- Factory Lubed: Yes
🔧 Compatibility:
- Works exclusively with Hall-Effect-enabled PCBs such as Wooting HE+, Geonworks HE, Neo HE, Hex80 HE, KBDfans HE, Matrix Lab HE Kit, and more.
- Not compatible with traditional MX PCBs or Keychron Dual-Rail Magnetic – these switches require dedicated magnetic boards.
🎧 Sound & Feel:
The Orchid Switch delivers a buttery-smooth linear typing experience with a subtle, controlled sound profile – ideal for professional environments and demanding gaming sessions.
