Bridge75 - 75% Aluminium ISO/ANSI Fully Built Keyboard [Preorder]

€115,00 Sold out
Coming Soon
Tax included. Shipping calculated at Checkout.

Pickup currently unavailable at Krailling

Bridge75 Plus & MAX - 75% Aluminium ISO/ANSI Fully Built Keyboard

The Bridge75 from Shortcut Studio is a high-quality 75% keyboard with aluminum case, gasket mount, PBT double-shot keycaps and RGB lighting.

In addition to ANSI layout, we are now also able to offer you the Bridge75 in ISO layout with ISO PBT Double-Shot keycaps for Germany, France, Spain and the Nordic countries.

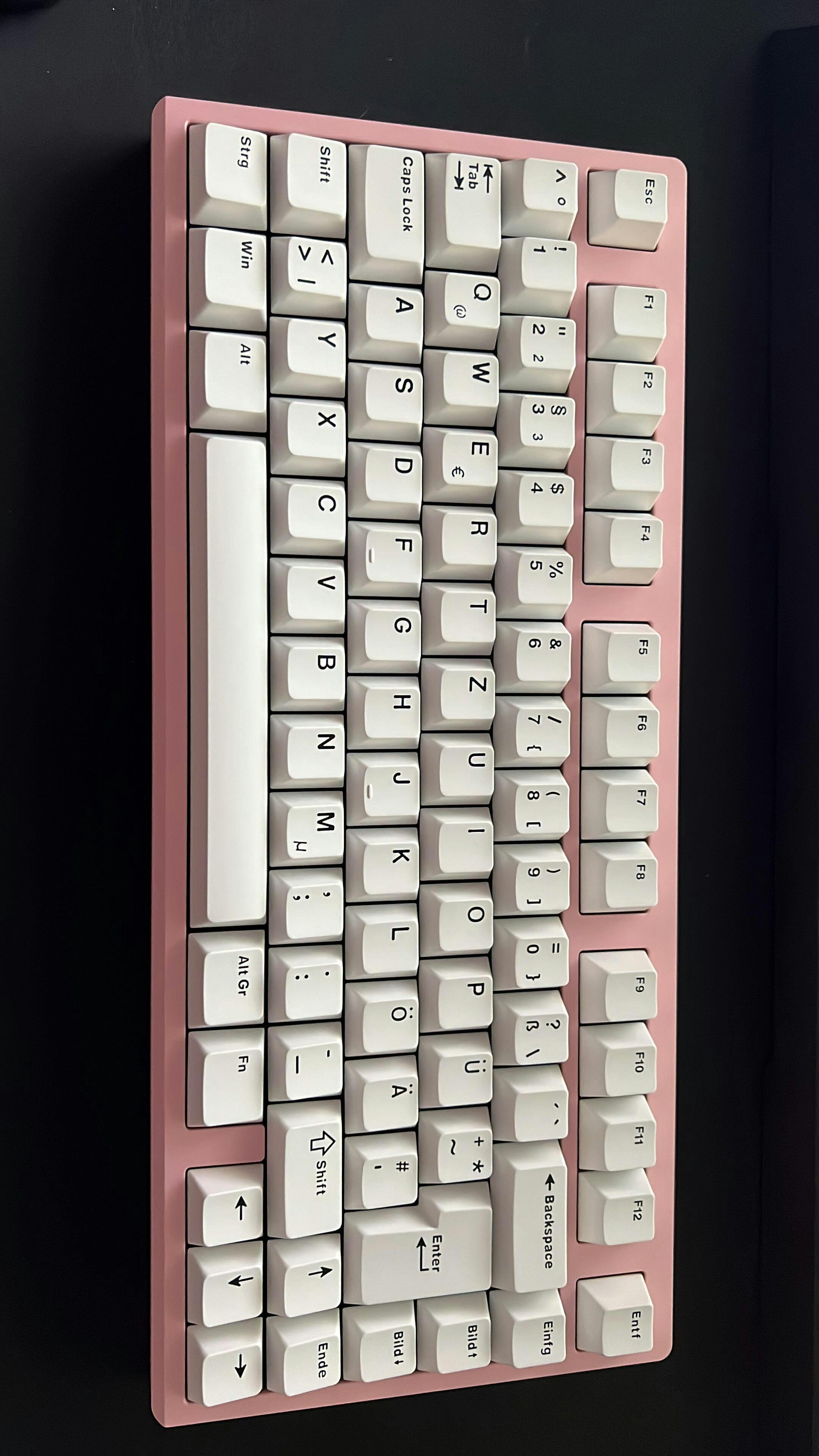

Please note: The ISO variants come with different housing colors but only with white (Black on White) keycaps as shown in the gallery!

The Bridge75 is available in 6 different case colors - black, white, silver, cream, retro white and pink - and 2 different switch options - the Princess Ultra Switches (Thock) or the SC Switches (Clack).

There is also a choice between the Classic version (ANSI only, 4000mAh battery, no RGB and only available in black and silver), the Plus version (ISO or ANSI, all colors) and the MAX version (everything from Plus + backside brass weight). The classic variant can be found here.

The Bridge75 is also well equipped in terms of connectivity! The tri-mode hot-swap PCB allows you to replace switches quick and easy at any time and offers support for wired, 2.4 GHz wireless and Bluetooth connections. The firmware is based on QMK and can be configured via VIA. The batteries are already pre-installed.

Specifications and Contents:

  • 75% Layout Aluminium Keyboard Case
  • ISO oder ANSI Support!
  • Backside Stainless Steel or Brass Weight
  • PBT Double-Shot Keycaps
  • PCB Gasket Mount
  • Ball-Catch Mechanism for screwless Design
  • Support for Wired, 2.4GHz Wireless and Bluetooth connections
  • Per-key RGB
  • FR4 Plate with Flex-Cuts
  • South Facing Hot-Swap Sockets
  • INOAC Poron Foam, IPXE Shee, PET Sheet, EPDM Case Foam, Anti-Static Pad included
  • 8000mAh Batteries
  • 1x Keycap & Switch Puller
  • Backup Switches
  • USB-C Cable

Minimalism in Design

The Bridge 75 embodies the essence of minimalism without compromising on functionality. Its sleek profile features a low front height of 1.82cm and a 6.5° typing angle, which are meticulously designed to provide a comfortable typing experience, whether you prefer using a wrist rest or not. The brushed stainless steel weight at the back of the keyboard not only enhances the visual appeal but also elevates the acoustic performance, delivering a typing experience that is both pleasing to the eye and the ear.

Outstanding Texture

We are committed to providing the finest surface finishing among products in its price range. The anodized cases of the Bridge 75 undergo a meticulous 180-grit sandblasting process prior to anodization. This treatment ensures a remarkably smooth and refined surface texture that is both pleasing to the touch and to the eye. The spray-coated cases are also produced by a top manufacturer utilizing high-quality toners to achieve a vibrant and standout finish.

Easy Disassembly

Although the Bridge 75 comes as a pre-assembled kit, we've designed it with customization in mind. Featuring a premium ball-catch mechanism, typically found in high-end mechanical keyboards, the Bridge 75 opens effortlessly without the need for tools. Coupled with its hot-swappable PCB, you can conveniently swap out switches and modify the foams to tailor the typing feel and sound profile to your personal preferences.

Exceptional Acoustics

The Bridge 75 boasts an acoustic package that rivals, if not surpasses, those of other same-level mechanical keyboards. This superior sound performance is achieved through a meticulous combination of materials: INOAC Poron foam, an IPXE sheet, a PET sheet, and EPDM case foam. Regardless of the switch selected, the keyboard is designed to deliver exceptional acoustics.

Wireless Connectivity & VIA Compatible

The Bridge 75 provides three modes of connectivity, wired, Bluetooth, and 2.4G, to ensure maximum flexibility in your use. For extended battery life, choose the Plus version, which offers the option of batteries up to 8000mAh. Furthermore, the keyboard's compatibility with VIA software gives you the power to tailor keymaps to meet your unique needs.
