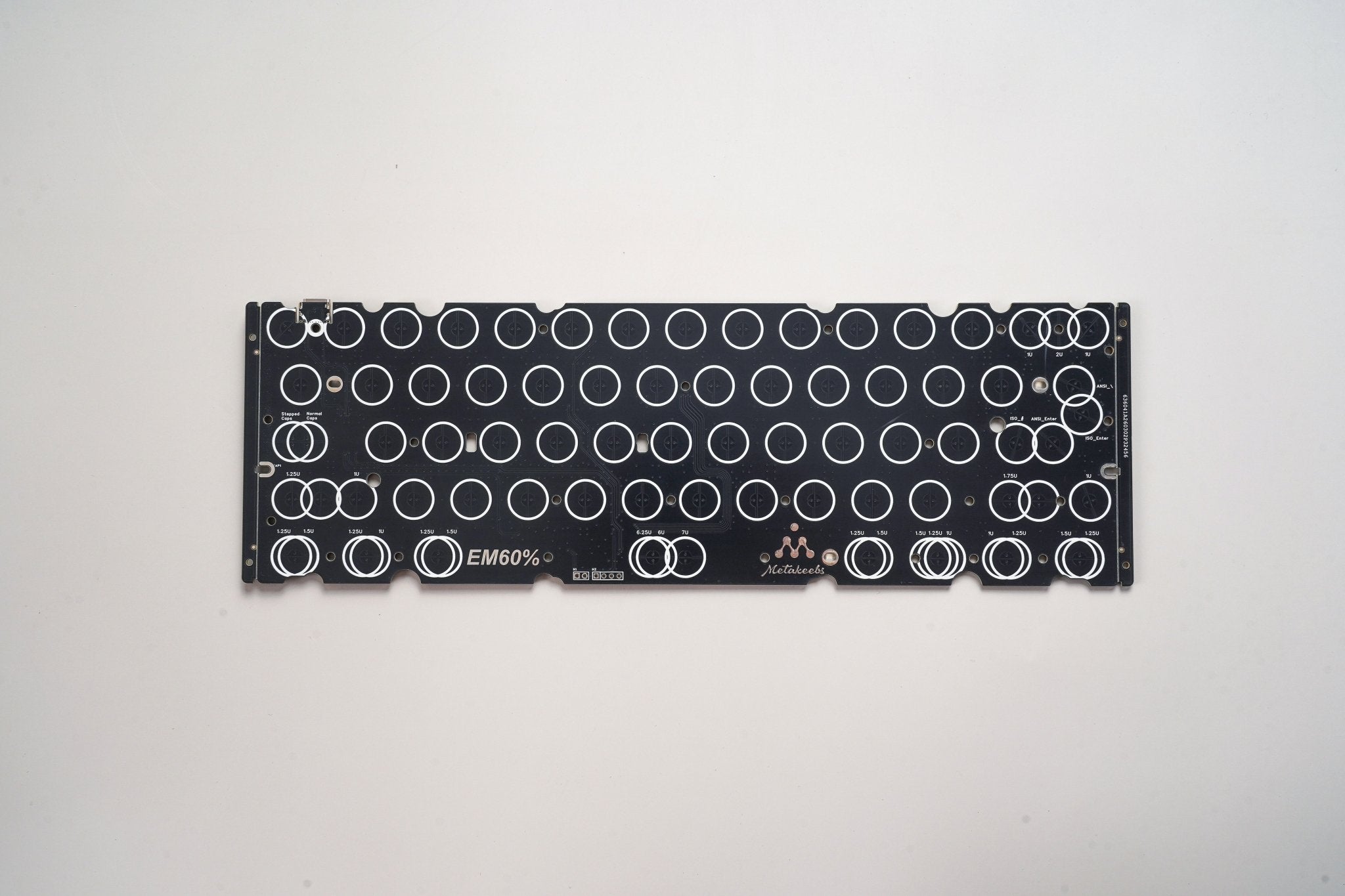

Metapulse EM60 v2 PCB - GH60 compatible 60% Keyboard PCB
Tax included. Shipping calculated at checkout
📄 Product Description
The MetaPulse EM60 V2 is the next evolutionary step in the Electro-Capacitive segment: a universal, highly compatible 60% PCB that gives EC enthusiasts maximum freedom over case choice, layout options, and tuning features. Whether you're converting an HHKB, building a GH60 tray-mount, or using an ai03-style case – the EM60 V2 is the most flexible EC PCB in its class.
What Makes the EM60 V2 Special?
The V2 has been completely redesigned based on the EM60 V1 and eliminates all compatibility and clearance issues of earlier EC PCBs. It combines absolute case compatibility, optimized electronics, ultra-slim Molex connectors, over 100 backlight RGB LEDs, and a VIA-compatible EC firmware with features like Rapid Trigger, APC, and SOCD cleaning.
✓ Maximum Case Compatibility
Directly compatible with:
- Tofu60 Redux
- HHKB Pro2
- HHKB Pro3
- HHKB Pro3 Mini
- ai03 cases
- GH60 cases (ideal for MX-to-EC conversions)
✓ New Molex Ultra-Slim Connector (Replacing JST)
- V1 had 4.5 mm JST ports that caused case interference
- V2 uses ultra-slim Molex ports – no more clearance issues
- Includes Molex-to-JST cable and Unified Daughter Board for full compatibility
✓ Optimized RGB Backlight
- Switched to ultra-slim LEDs
- LED count increased to 100+
- Significantly brighter and more uniform illumination
- No interference with sliders or housings
✓ Break-Away USB-C Port
- Detachable Type-C module
- Ideal for GH60 cases or custom EC enclosures
- Maximum flexibility for case modding
✓ Improved Structural Stability
- Additional screw points
- Better fit in non-standard layouts (e.g. WKL)
- Greater durability and vibration stability
Firmware Features (VIA-Compatible)
- APC – Actuation Point Control
- Rapid Trigger (RT)
- Calibration & Bootloader Jump
- NKRO & SOCD Cleaning
- RGB Control
- One-Shot, Tap-Hold & Dynamic Keystroke (e.g. for counter-strafe responsiveness)
- Wired-only (no Bluetooth support)
Dome Compatibility
Compatible with all common EC domes: Deskeys, BKE, MetaKeebs Domes, MetaPulse Red Series, MetaPulse Blue Series.
