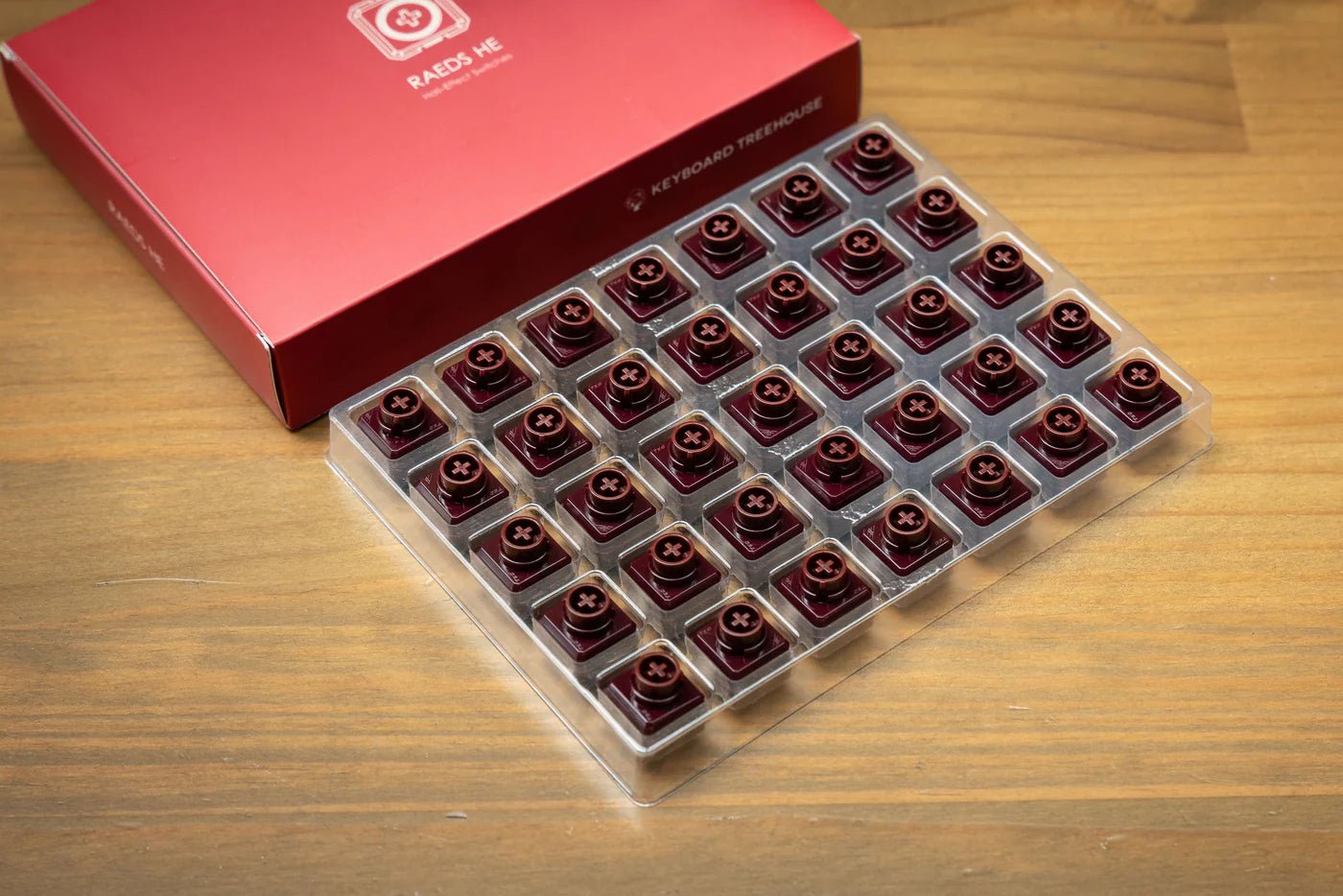

AEBoards Raeds HE switches, switches in a clear tray next to the red packaging box, angled view

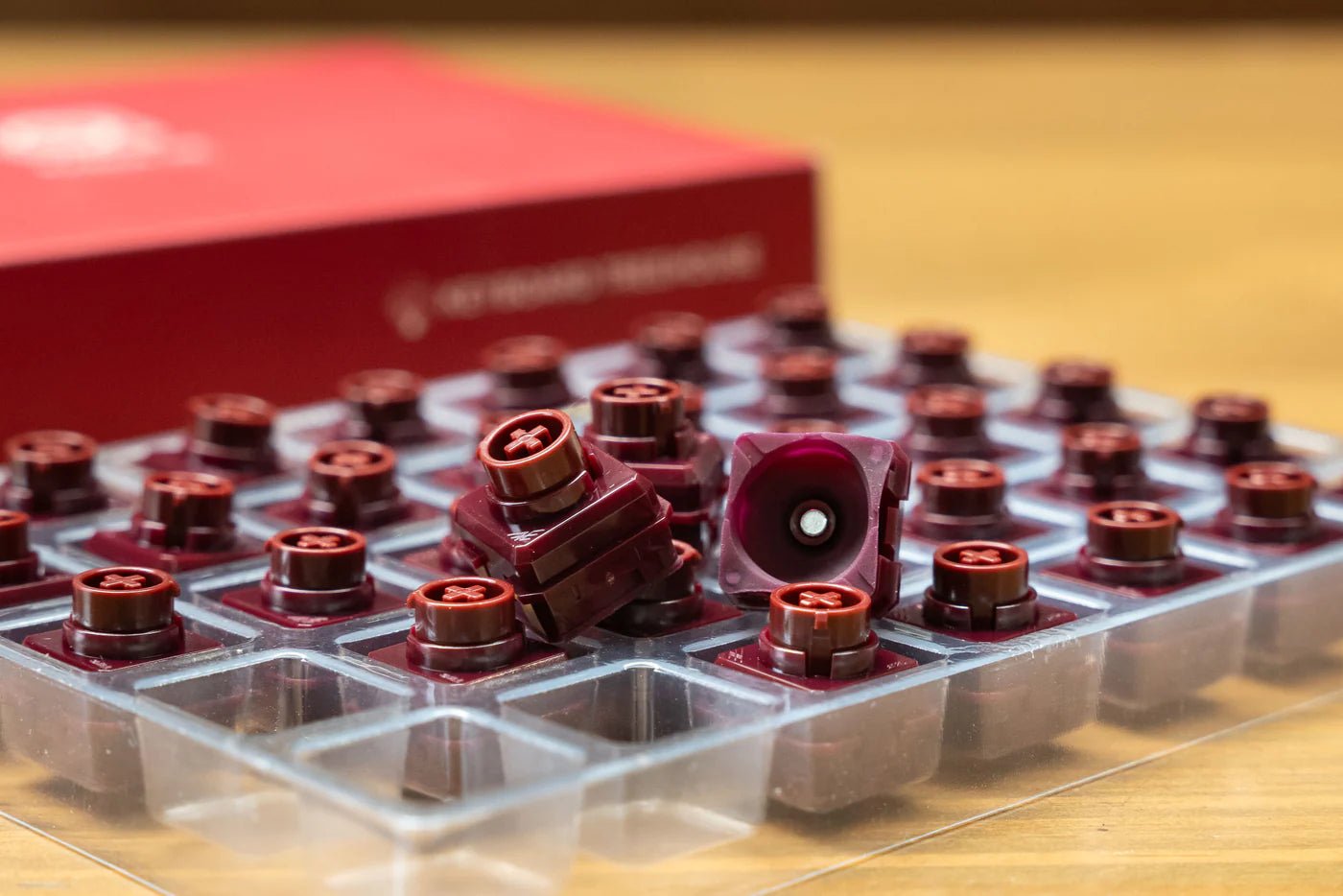

AEBoards Raeds HE switches, tray with switches and two loose switches in front of red packaging, close-up

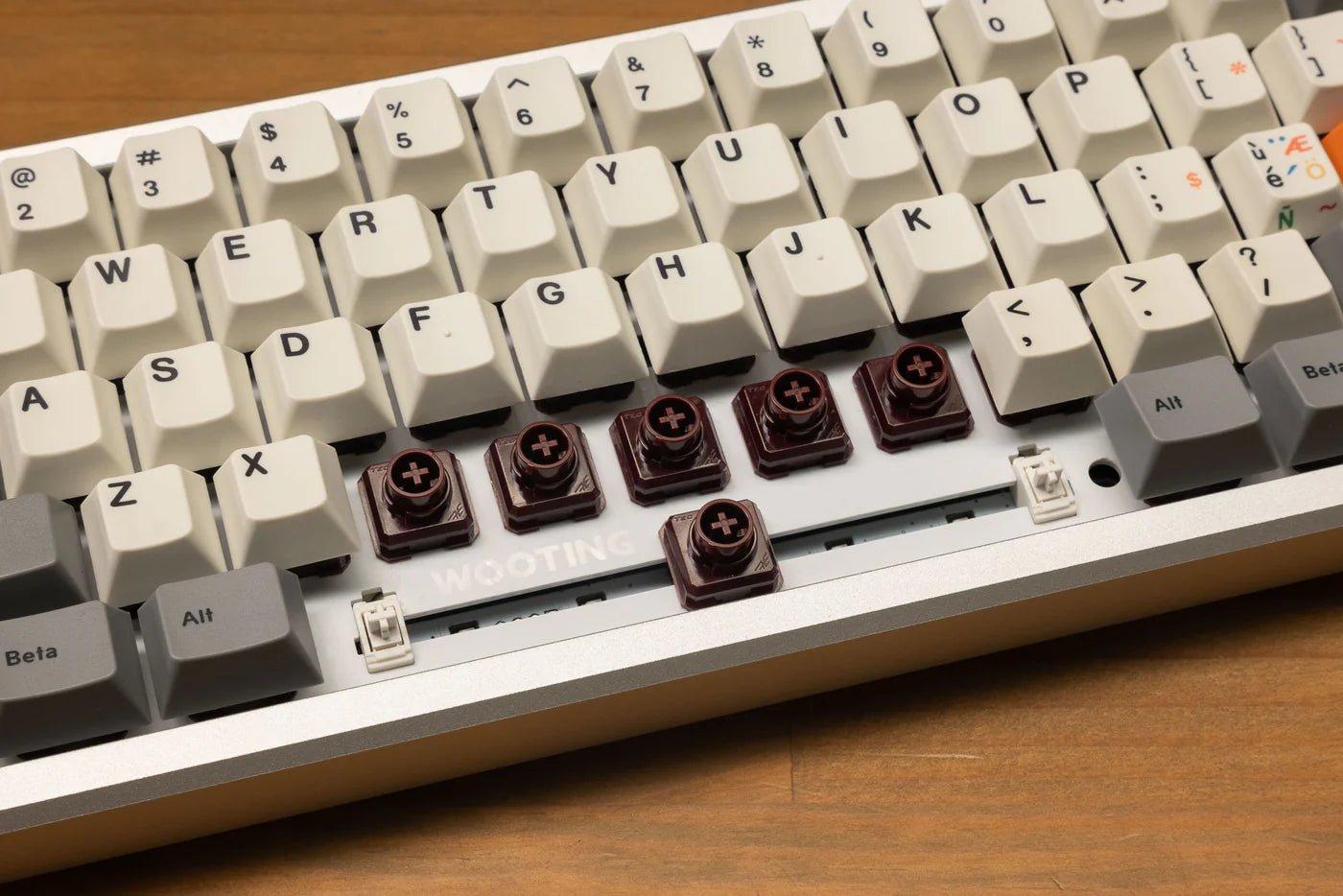

AEBoards Raeds HE switches, five switches without keycaps in the bottom row of a keyboard, angled view

AEBoards Raeds HE Linear Hall Effect Switches (35pcs)

Name: AEBoards Raeds HE Linear Hall Effect Switches (35pcs)
Brand: AEBoards
SKU: MK-AEB-RAEDSHE-02
Price: 24.00 EUR
Availability: InStock
Rating: 5.0 (5 reviews)

€24,00 EUR

5.0

Tax included. Shipping from €3.90, free from €70.

Only 6 left in stock · order by 12:00 (CET) and it ships the same business day, delivery in 1–3 business days

Experience a brand-new dimension of typing feel with the AEBoards Raeds HE Switches – the world's first Hall-Effect switches with a modified rubber dome. Inspired by the popular Naevies EC switches and developed by AEBoards, the Raeds HE combine the tactile pleasure of a rubber dome with the lightning-fast responsiveness of magnetic detection.

Highlights:

Unique typing feel thanks to modified rubber domes – smooth, linear feedback, ideal for gamers and heavy typists
Magnetic Hall-Effect detection – contactless, no contact bounce, no mechanical wear
MX footprint & MX stem – compatible with common MX keycaps
Factory lubed for an immediate premium feel
Modular design: The silicone domes can be freely swapped – 60g Purple Domes are available as an option

Important compatibility note: The Raeds HE switches only work with Hall-Effect-compatible PCBs such as Wooting HE+, Geonworks HE, Neo HE, Hex80 HE, KBDfans HE, Matrix Lab HE Kit, Venom PCBs, and many more. They are not compatible with traditional MX PCBs or Keychron Dual-Rail Magnetic.

Quantity:

Add a switch container (460ml | 110 Switches) Holds up to 110 switches – your switches are shipped directly in the container.Light scratches on the top side are possible due to production. +€4,50

Good to know

!Magnetic switches: they need a keyboard with hall sensors – a regular hot-swap keyboard won't detect them.
•How many do you need? About 61 for 60%, 67–68 for 65%, 82–84 for 75%, 87 for TKL and 104 for full size – one more for ISO.
+Not sure? Try 10 switches of your choice with the switch tester.

Learn more: Switch types explained Hall effect & rapid trigger

Switch Type	Hall Effect Linear
Top Housing Material	PC
Bottom Housing Material	PC
Stem Material	POM
Total Travel	3.9mm
Bottom-out Force	45gf
LED Diffusor	No
Factory Lubed	No
