Nuxros KeySnap – A Smart Alternative to Gummy O-Ring Mounting for Unique Tactility and Acoustic Tuning

The GEON x Nuxros KeySnap is designed to sit between the PCB and plate, offering an innovative mounting solution for keyboard enthusiasts who want to fine-tune both sound and feel. Instead of traditional O-rings, it uses custom-molded gaskets made from Silicone or FKM (Viton)—delivering controlled, customizable feedback with minimal effort.

🛠️ Key Features

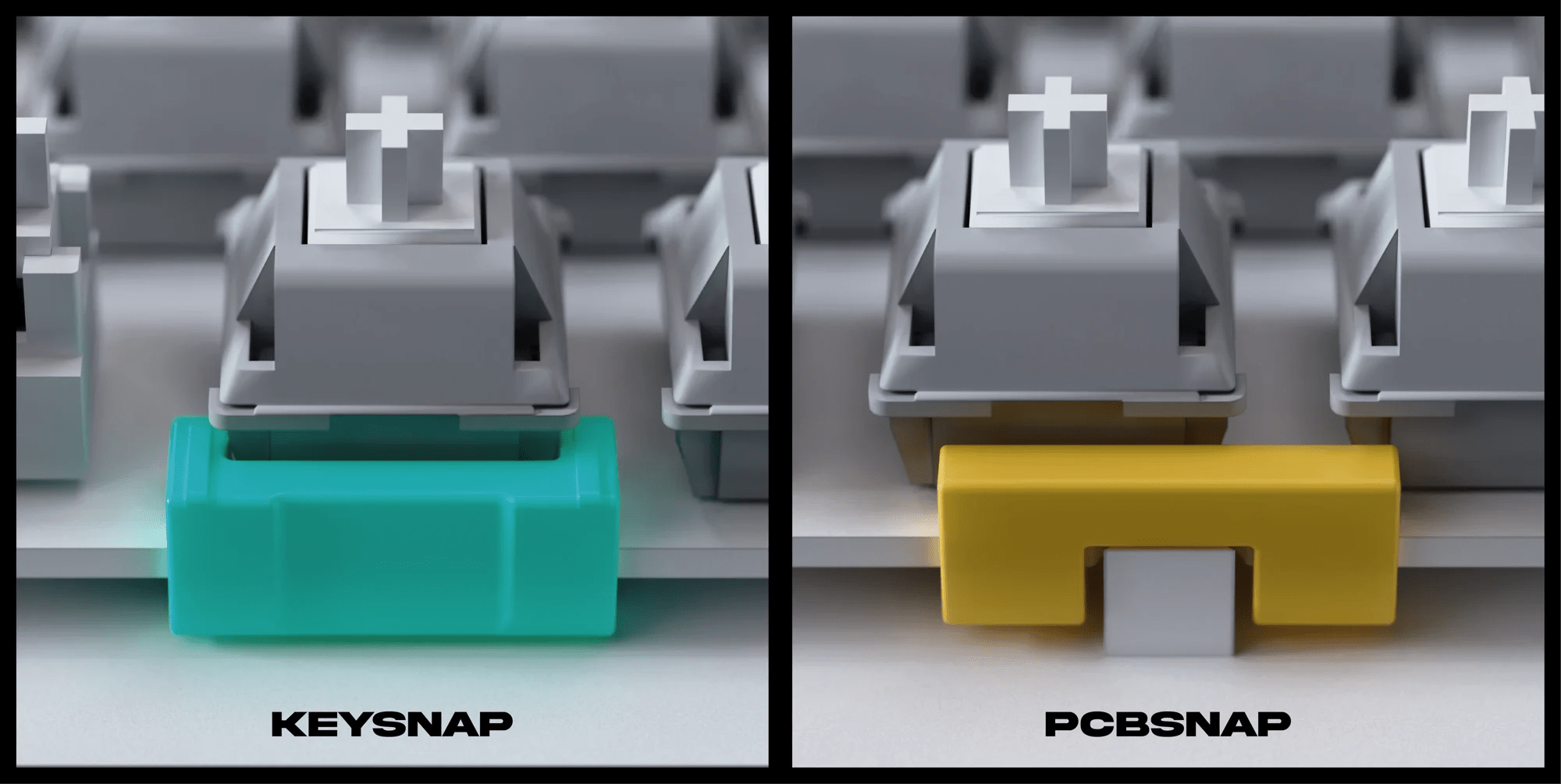

• Alternative to Gummy O-Ring Mount: KeySnap is clamped between the PCB and plate, resting on the bottom case to create a stable yet flexible connection.
• Unique Mounting Style: This sandwich-style setup alters the acoustic profile and typing feel in a noticeable, refined way.
• Material Options:

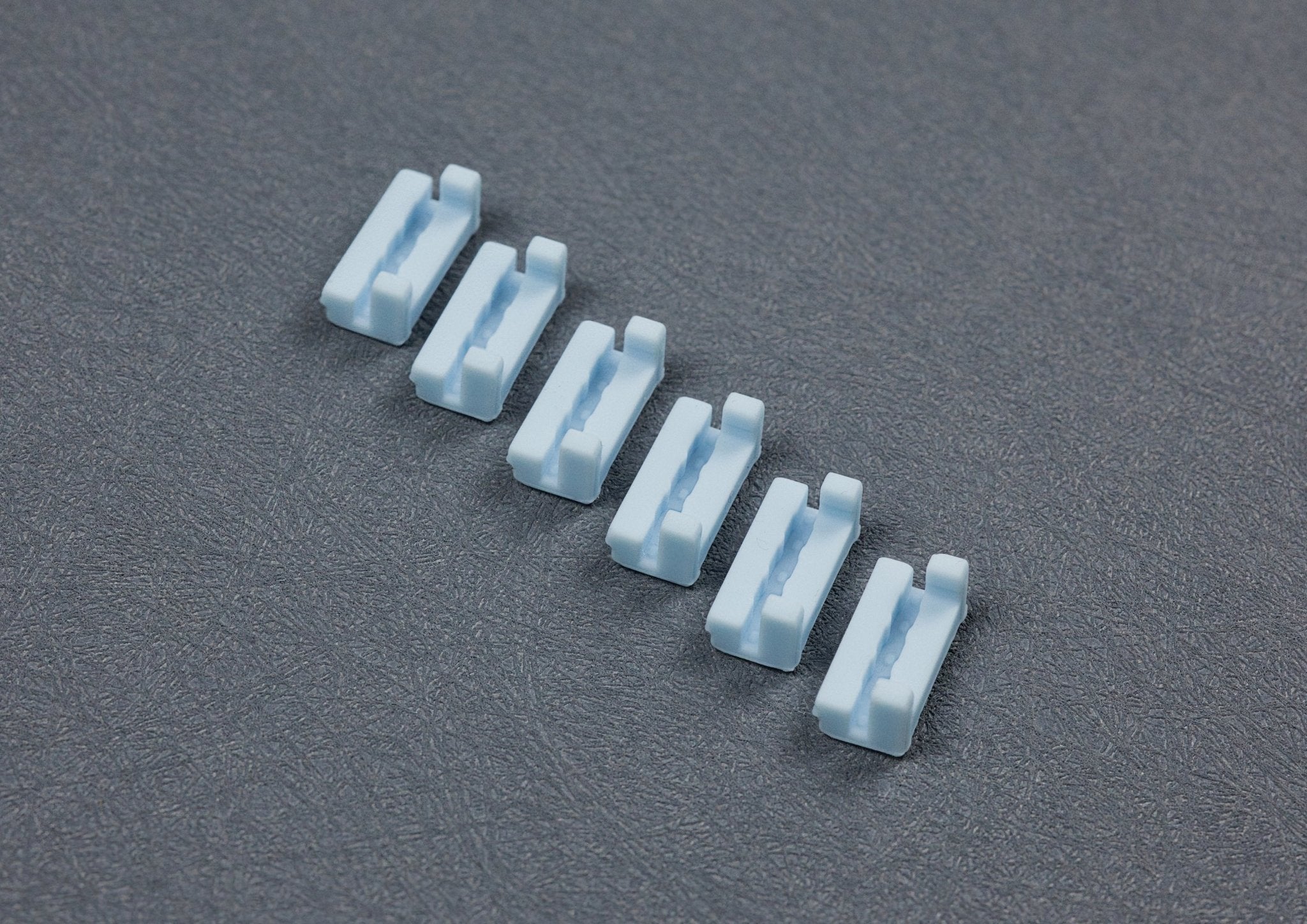

• Silicone 50A (Baby Blue) – ultra-soft

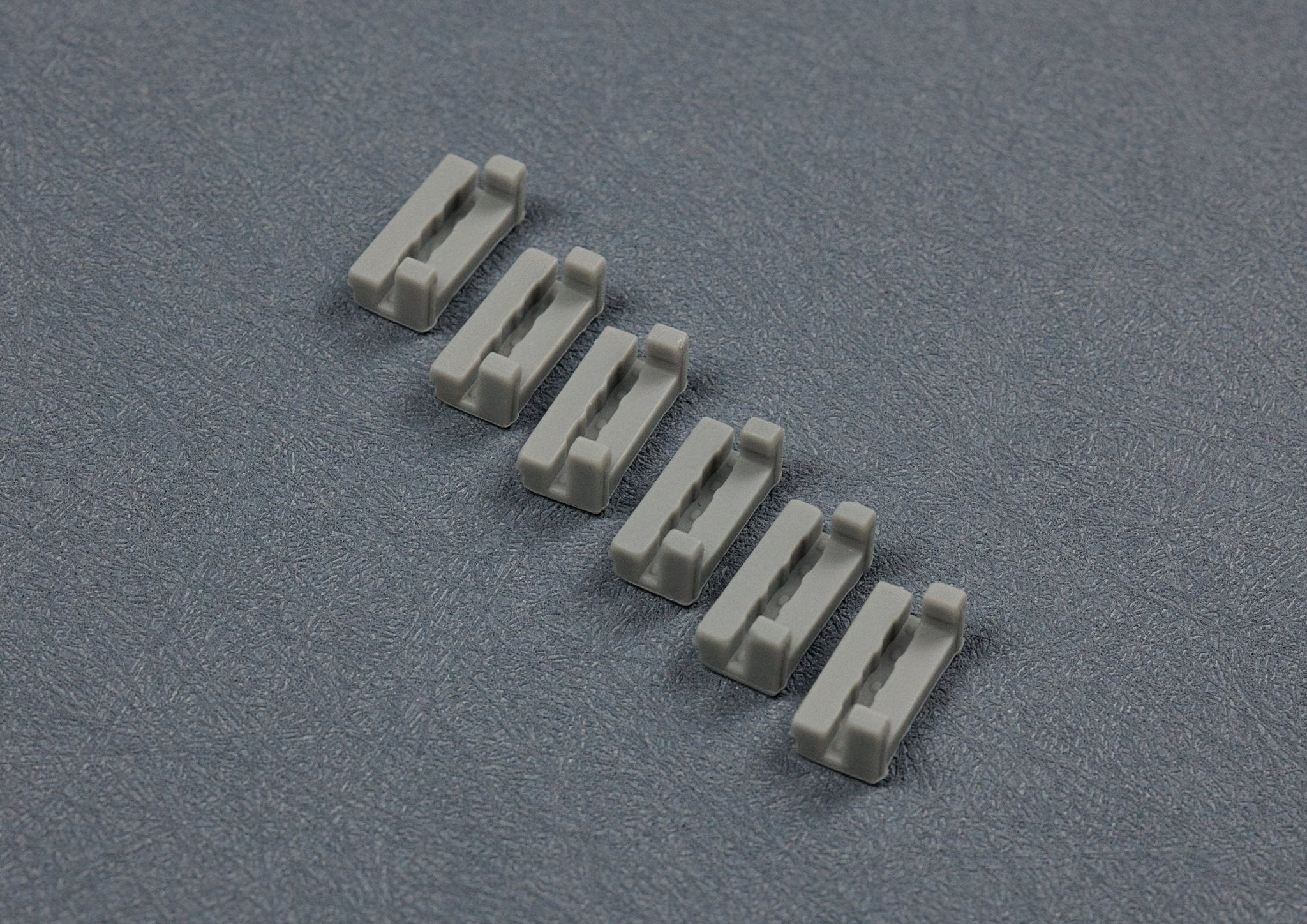

• Silicone 70A (Gray/Yellow) – medium firmness

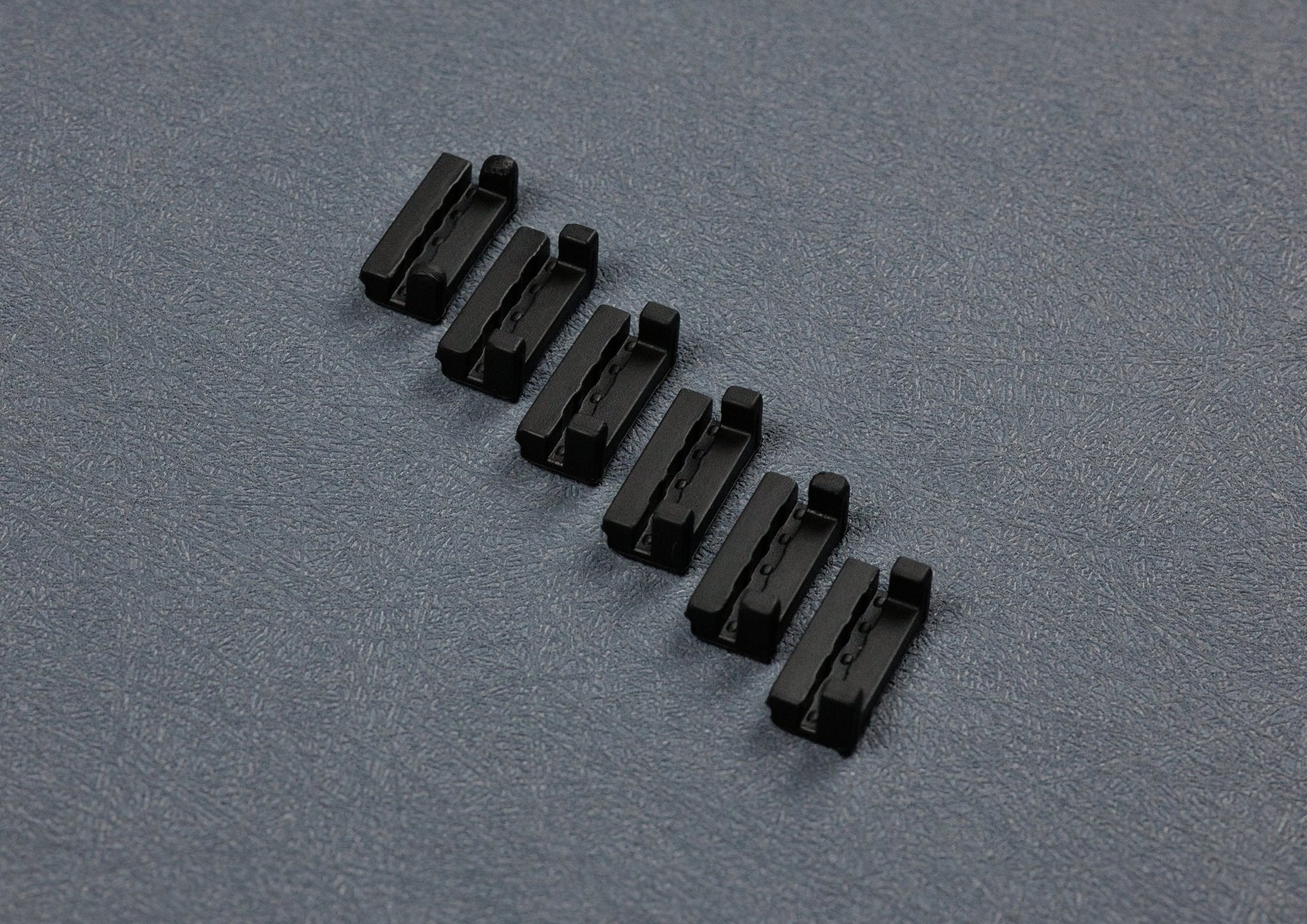

• FKM 70A (Black) – firm and precise
• Contents: 6 pieces per set – suitable for most layouts

🎯 Compatibility

• Works with both hot-swap and soldered PCBs (fit may be tighter with hot-swap sockets depending on material)
• Confirmed compatible with:
• Venom60 MX & HE (6.25U / 7U)
• Glare60
• Frog Mini, Leggera, Pesante
• Sebas
• Note: When using FKM (Black), it’s recommended to install no more than two pieces on the top side

🔍 Material Comparison

• Silicone offers a softer, more flexible typing experience
• FKM provides firmer, more controlled feedback

⚠️ Installation Note

Do not install KeySnap in the marked areas of the PCB, as this may interfere with case assembly. Vertical coverage: 94.0 ± 0.2 mm

💡 Why Choose KeySnap?

For builders who want to understand their keyboard—not just mod it—KeySnap offers a sleek way to personalize typing feel and sound without complex modifications. A small part with a big impact—ideal for sound tuning, flex optimization, and creative builds.
