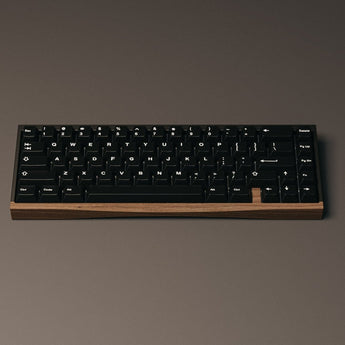

Typface Kafka - Hall Effect Fully Built Keyboard [Group-Buy]

€249,00 Sold out
Keyboard Kit
Tax included. Shipping calculated at Checkout.
Case Color: Black
Accent: Walnut
Keycaps: White on Black

Subtle design. Radical performance. Two worlds – one standard.

The Typface Kafka is a 65% keyboard that combines uncompromising engineering with an exceptionally clean design language. It is available either as an MX barebone for classic mechanical builds or as a fully assembled Hall‑Effect variant for maximum speed and precision.

Crafted from 6061 aluminum, refined with a brass weight and a walnut or maple wood accent, Kafka unites premium materials with an acoustically optimized construction.

This product page features the fully built Hall Effect variant!

⚡ Prebuilt Hall Effect – For maximum responsiveness

The Hall‑Effect version comes fully assembled.

  • Venom65 HE PCB (RISC‑V32 architecture)
  • 8,000 Hz polling rate, 14,000 Hz scan rate, 0.16 ms latency
  • 0.1 mm actuation sensitivity – extremely precise, ideal for gaming & rapid trigger
  • Analog‑input capabilities
  • Pre‑built with high‑quality Hall‑Effect switches (e.g., Geon Raw HE, AGS Radiant HE, UR Ultra Ice HE)
  • Ready to use out of the box – no modding required
  • Delivers a light, fast, springy typing feel with a clean acoustic signature

🏗️ Materials & Construction

  • Case: CNC‑milled 6061 aluminum
  • Weight: Solid C360 brass for stability & deep acoustics
  • Accent: Real wood (walnut or maple)
  • Plates: Aluminum included; optional CF, PP, POM, PC, FR‑4 as extra plates
  • Mounting: Gasket isolation or O‑ring – two distinct sound & feel profiles
  • Weight (built): approx. 1.6 kg

🎧 Acoustics & Typing Feel

Kafka is designed to deliver the experience of a refined custom build without requiring complex modding.

  • Gasket mount: dampened, controlled, bassy
  • O‑ring mount: bouncy, lively, brighter sound character

🎨 Design & Aesthetics

  • Minimalist lines and clean geometry
  • Three case colors: Black, Silver, Warm Gray
  • Keycaps (HE prebuilt): White on Black or Classic Beige ABS doubleshot keycaps
  • No RGB distractions – focus on form, materials, and sound

📦 Included in the Box – Hall Effect Prebuilt

  • Fully assembled keyboard
  • Hall‑Effect switches of your choice
  • Keycap set of your choice
  • Aluminum plate
  • 4 feet
  • 50A O‑ring
  • 5× 60A plate gaskets
  • Carry case
  • Fly daughterboard + JST cable
Specifications

Kafka Case:

  • Width: 313.9 mm / 12.4 inches
  • Depth: 111.9 mm / 4.4 inches
  • Height: 29.5 mm / 1.2 inches
  • Effective Front Height: 22.4 mm / 0.9 inches
  • Weight: 1.6 kg / 3.5 lbs (built)
  • Materials: 6061 Aluminium / C360 Brass / Walnut or Maple
  • Finishes: Anodisation / Water-based Urethane (Wood)

Venom65 HE PCB:

  • PCB Polling Rate: Up to 8KHz
  • PCB Scan Rate (per key): Up to 14 KHz
  • PCB Latency: 0.16 ms
  • RGB Support: None

Kafka MX PCB (Soldered):

  • MCU: RP2040
  • Daughterboard: Fly DB by Geon
  • Connectors: JST-SH 4pin
  • Compatible Software: Vial
  • ESD Protection: Yes
  • Compatible Layouts: Refer to Layout Compatibility

Kafka MX PCB (Hot-swap):

  • MCU: RP2040
  • Sockets: Gateron
  • Daughterboard: Fly DB by Geon
  • Connectors: JST-SH 4pin
  • Compatible Software: Vial
  • ESD Protection: Yes
  • Compatible Layouts: Refer to Layout Compatibility
Materials & Natural Variation

Kafka uses the following materials:

  • Walnut/Maple
  • PC
  • Brass

Natural variances and changes in these materials are to be expected.

Below are specific notes for some of the materials used in the Kafka:

Wood Components

  • Wood is a natural material and will vary in:
    Grain pattern
    Colour
    Texture
  • Small knots, mineral streaks, or natural figuring may be present.
  • Minor changes due to temperature and humidity are normal.
  • Any variations that do not affect the assembly will not be considered as defects.

PC Components

  • PC materials may show faint surface marks.
  • These marks are normal and not considered scratches.
  • PC material may yellow over time due to environmental exposure.

Brass Components

  • Brass may naturally oxidise over time.
  • Protective coatings are applied, but light oxidation may still occur during transport or use.
  • Light oxidation is considered normal and not a quality defect.
Quality Control Standards

Kafka units are inspected according to defined QC standards before shipment.

  • QC applies to external, visible surfaces and functional components.
  • Internal surfaces or areas not visible during normal use are not considered for cosmetic QC.
  • Minor cosmetic imperfections that do not affect function or durability are acceptable.

A unit is considered defective only if:

  • There is a functional failure, or
  • There is visible damage beyond acceptable tolerances (1x1mm) that affects normal use.
Case Color: Black
Accent: Walnut
Keycaps: White on Black

PCB Layouts

Venom65 HE PCB Layout

MX ANSI Hotswap PCB Layout

MX Solder PCB Layout

MX ISO Hotswap PCB Layout

Keycap Set Kittings

Typface Kafka - Hall Effect Fully Built Keyboard [Group - Buy] - MonacoKeys

White on Black

Typface Kafka - Hall Effect Fully Built Keyboard [Group - Buy] - MonacoKeys

Classic Beige
