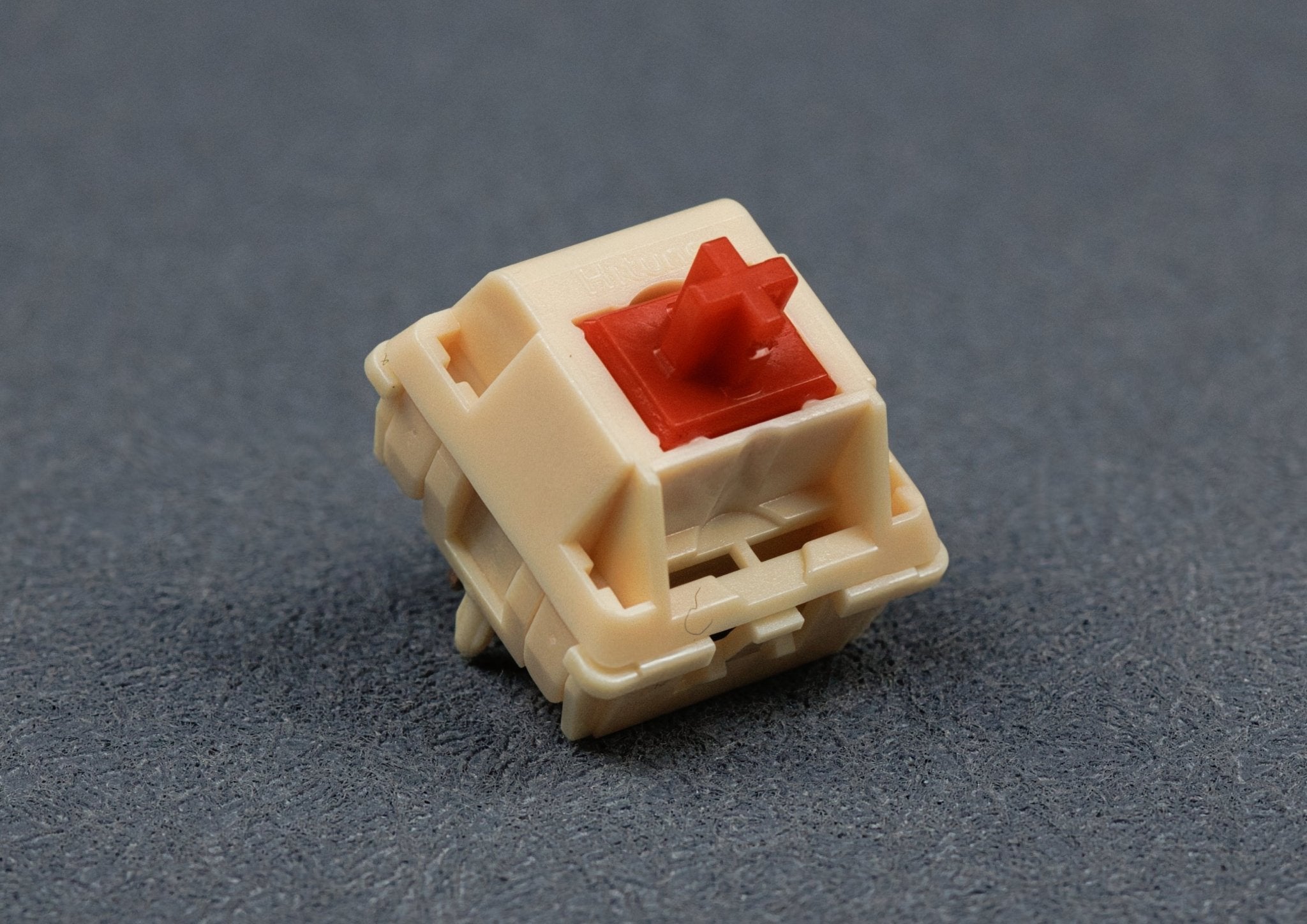

Wingtree BM11 switch, beige top and bottom housing, dark red stem, angled view

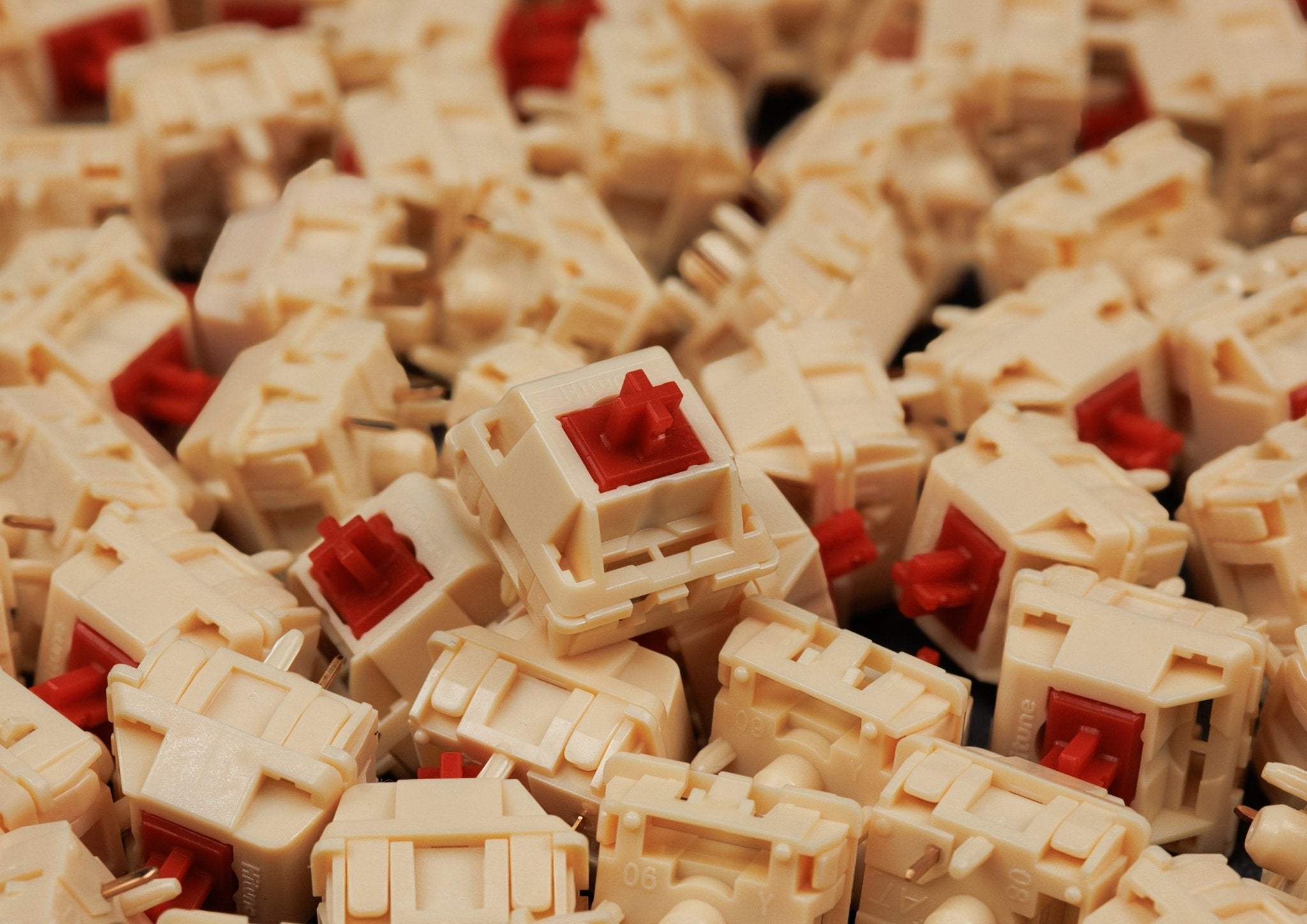

Wingtree BM11 switches, many loose beige switches with dark red stems, close-up

Wingtree BM11 Tactile Switches (10pcs)

Name: Wingtree BM11 Tactile Switches (10pcs)
Brand: Wingtree
SKU: MK-WGT-BM11-03
Price: 2.90 EUR
Availability: InStock
Rating: 5.0 (1 reviews)

€2,90 EUR

€3,50 EUR

Save €0,60

5.0

Tax included. Shipping from €3.90, free from €70.

In stock · order by 12:00 (CET) and it ships the same business day, delivery in 1–3 business days

A short, crisp tactile with direct feedback. Its pronounced P-shaped bump and short travel create a fast, precise typing feel. Acoustically, the BM11 is on the brighter, slightly clacky side and a bit louder than more restrained tactiles. Ideal for users who prefer a clear tactile signal without much extra travel.

Quantity:

Add a switch container (460ml | 110 Switches) Holds up to 110 switches – your switches are shipped directly in the container.Light scratches on the top side are possible due to production. +€4,50

Good to know

•Tactile: noticeable bump, no click.
•How many do you need? About 61 for 60%, 67–68 for 65%, 82–84 for 75%, 87 for TKL and 104 for full size – one more for ISO.
+Not sure? Try 10 switches of your choice with the switch tester.

Learn more: Switch types explained Hot-swap keyboards

Switch Type	Tactile
Top Housing Material	PC
Bottom Housing Material	PC
Stem Material	UPE
Spring Length	20mm
Spring Type	Double Stage
Pre-travel	2.2mm
Total Travel	2.9mm
Characteristic	Long Pole (<=3.6mm)
Operating Force	50gf
Bottom-out Force	56gf
Pins	5-Pin
LED Diffusor	No
Factory Lubed	Yes
