KBDFans Cat60 - 60% Custom Keyboard Kit
Tax included. Shipping from €3.90, free from €70.
Notify me when available
What else you need
- +Switches – 60–64 for 60 %, depending on the layout
- +Keycaps – matching your layout
- +Stabilizers – for long keys like space, shift and enter
- ✓Hot-swap: just plug in the switches, no soldering
- •PCB and plate – included depending on your selection; if you choose “No PCB” or “No plate” above, you need them separately
Good to know: Keyboard sizes and layoutsHot-swap keyboards

Notify me when available
📄 Produktbeschreibung
KBDFans × CtrlFrek · 60%
Cat60 – cat artwork meets 60%
The Cat60 brings CtrlFrek's playful Cat:3 world to a new 60% board, developed together with KBDfans: gentle case curves, slim bezels and a cat illustration on the underside.

- O-ring or OG mountdepending on the PCB
- 7° typing angle297.22 × 111.33 mm
- Hot-swap PCBANSI or ISO, RGB underglow
- HE-readye.g. Wooting 60HE
01 · Design
Soft curves, slim bezels
The shape was refined for the better part of a year: a compact footprint with gentler case curves and slimmer bezels. The assembly screws are hidden, so the underside stays clear for the artwork.
Cherry lip
A slim lip along the front edge catches the light and draws a crisp line above the softly sculpted lower case.
Curves like claw marks
Two curved cuts shape the side profile – a nod to the marks a cat's claws leave behind.


02 · Backplate

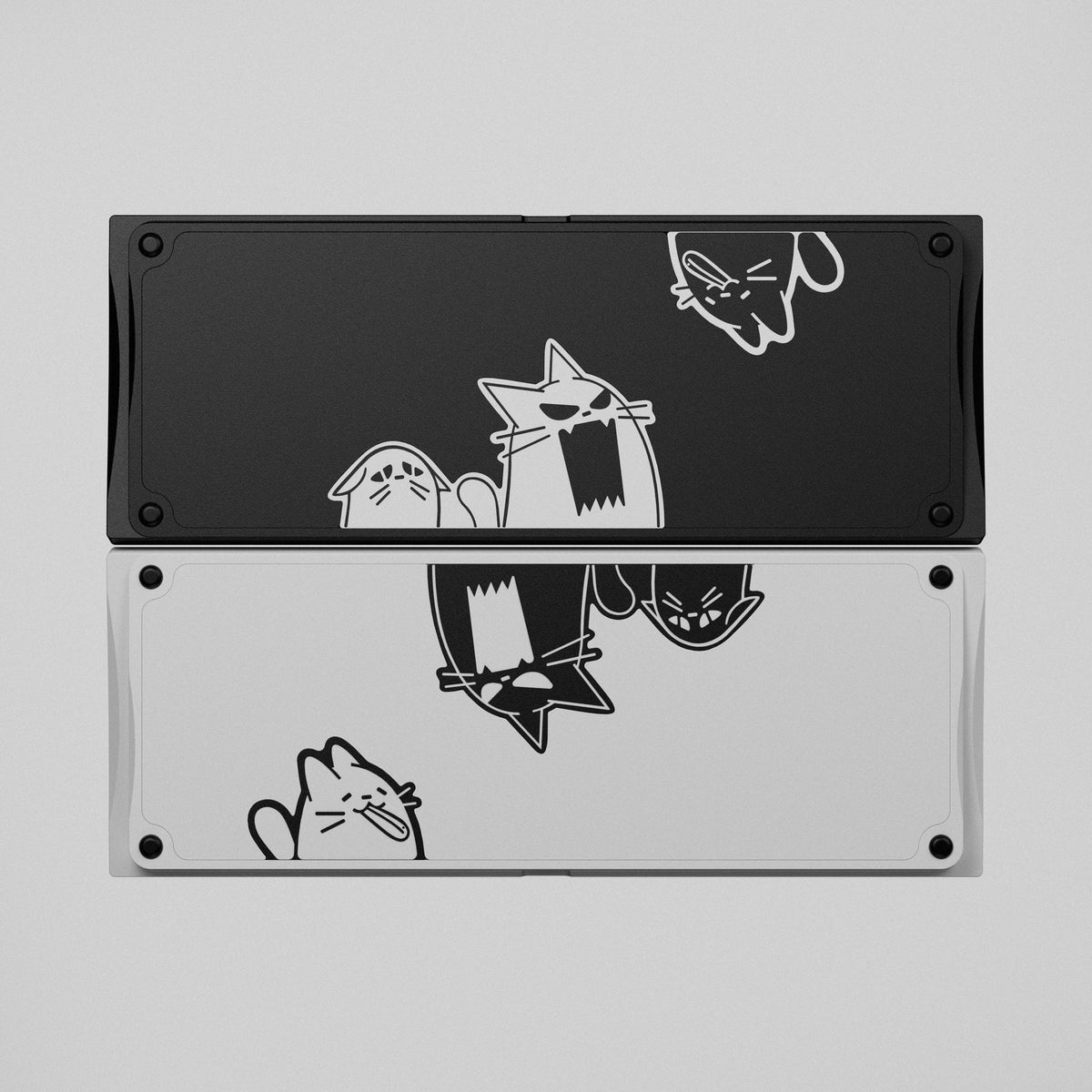

Two cats to swap
Two removable Cat artwork pieces sit in the backplate. Backplate and pieces can be combined in different colours – so you end up with your own version.
The artwork is recessed and paint-filled. What that means for the finish is covered further down under "Good to know".

03 · Build
Everything in the kit
The exploded view shows the build from the plate down to the backplate. The kit includes the case, silicone ring, mini and mid gaskets, rubber feet, case foam with PET sheet and a carrying case – for both mounting styles. You add the PCB, plate and foam kit in the configurator.


04 · Mount
O-ring or OG mount
KBDfans combines its own custom silicone ring (CSR) with elastic supports for a soft, consistent typing feel. The MX hot-swap PCB uses the O-ring mount, PCBs without cutouts use the OG mount. Both are easy to take apart again.

O-ring mount · MX hot-swap PCB
Mid gaskets press against the silicone ring and limit travel for a softer typing feel.

OG mount · PCBs without cutouts
Mini gaskets support the PCB and limit how far it moves down.
05 · PCB
MX hot-swap in ANSI or ISO
- Hot-swap for MX switches, wired via the included daughterboard
- Layout: ANSI or ISO
- Lighting: RGB underglow
- Artwork: Cat:3 artwork on the PCB
Got your own PCB? The Cat60 takes GH60-compatible 60% PCBs – our MK60MX fits too, connected via the daughterboard with FPC cable from the configurator.

06 · Plate
Three plates to choose from
The plate shapes typing feel and sound. The MX PCB comes with a choice of three materials, the Tofix HE PCB with the matching Tofix60 aluminium plate.

FR4
A balanced middle ground with some flex.

Aluminium
Firm bottom-out, bright sound.

Carbon fibre
Stiff and crisp.
07 · Hall effect
A case for HE boards too
The Cat60 takes GH60-compatible 60% PCBs, including HE PCBs. For a swap you need the Cat60 FPC cable with daughterboard and, depending on the PCB, mini or mid gaskets with the silicone ring. The daughterboard and FPC cable work not only with HE PCBs but also with GH60-type PCBs such as our MK60MX.
Tofix 60HE, Wooting 60HE / 60HE+ / 60HE v2, GH60
Rakka v2, Venom 60HE, H60
Wooting 60HE / 60HE+: keep the original PCB and plate and add the silicone ring, mini gaskets and the Cat60 FPC cable with daughterboard. Wooting 60HE v2: the original assembly stays as it is – you only need mini gaskets and the FPC cable with daughterboard, no new silicone ring.


08 · Colours
Mix and match

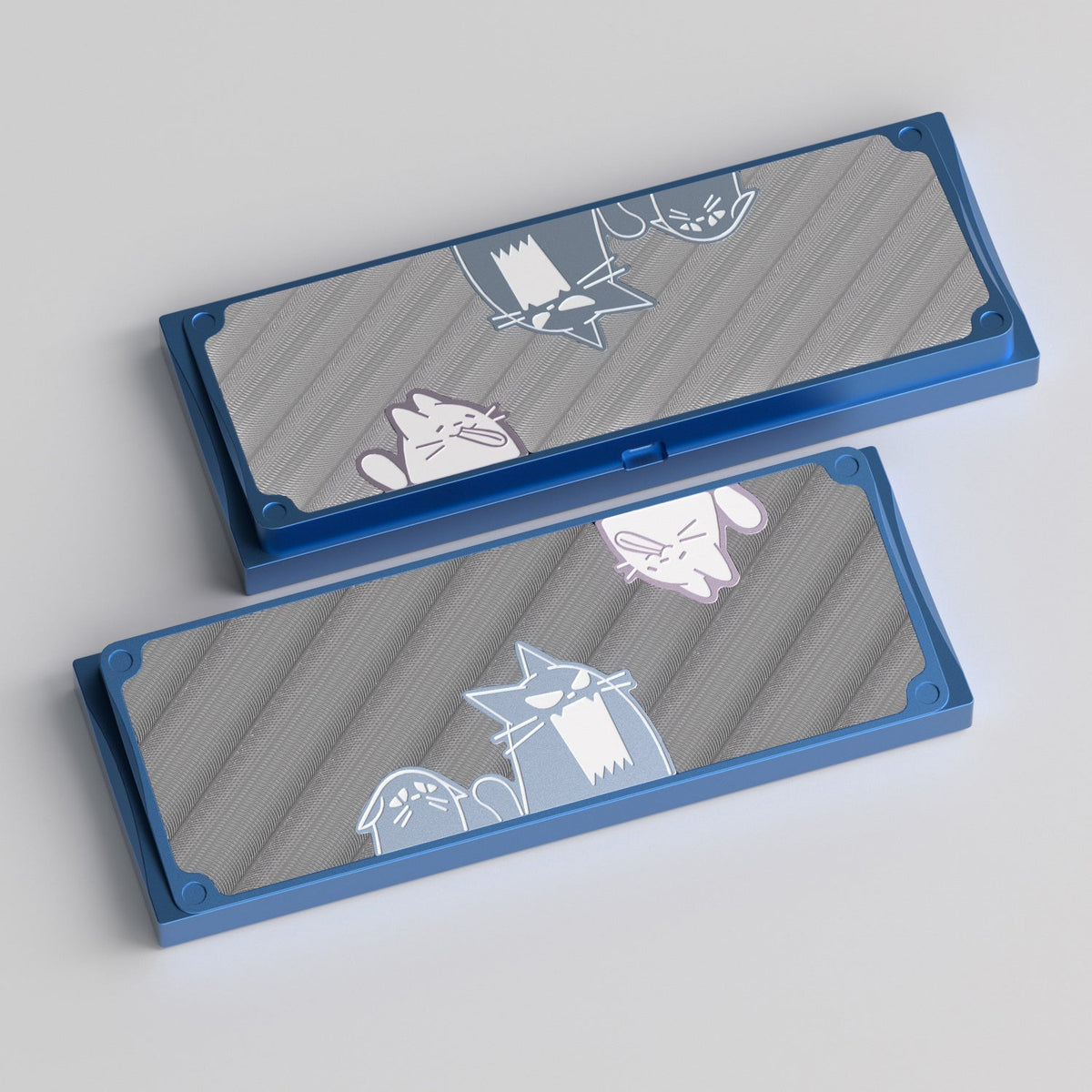

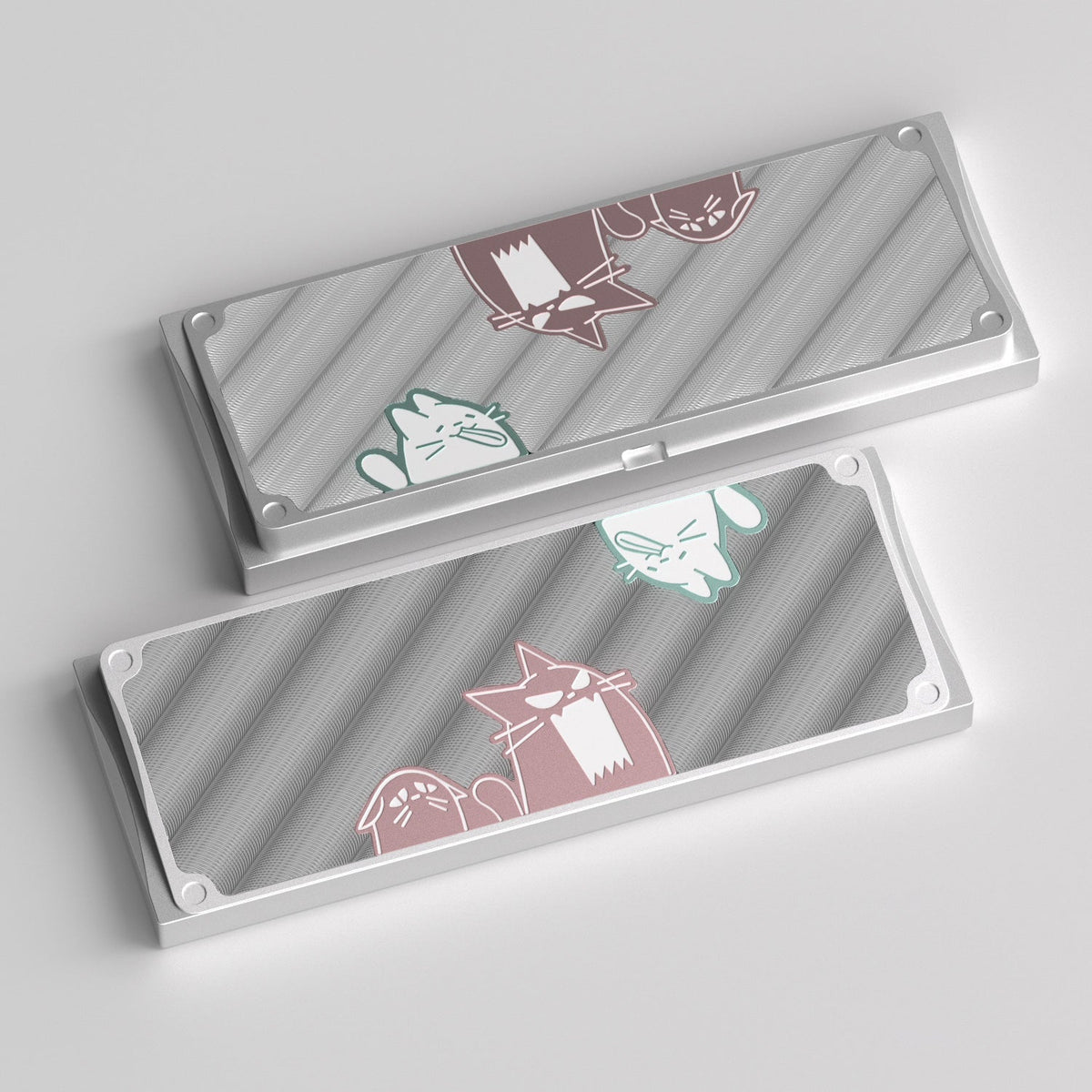

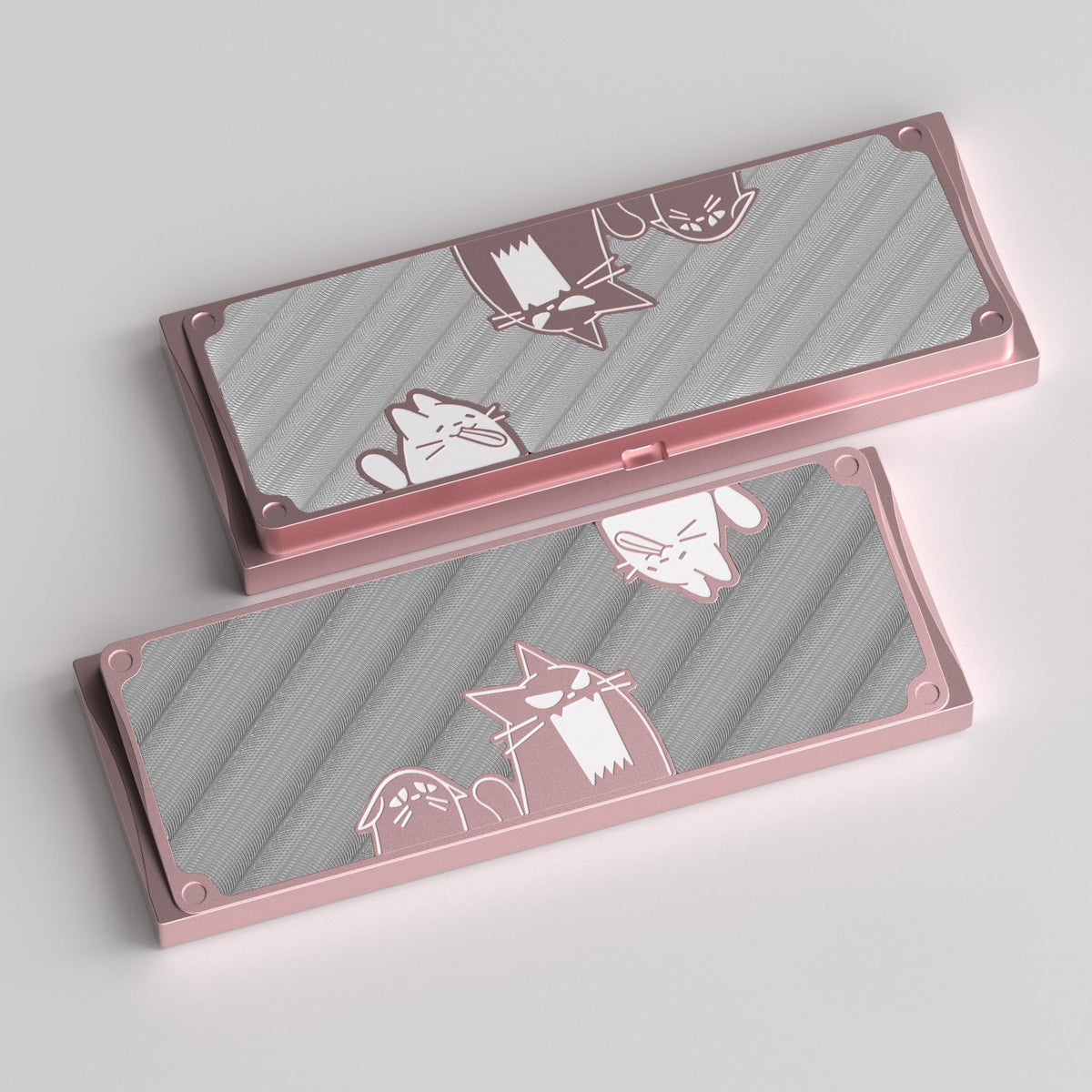

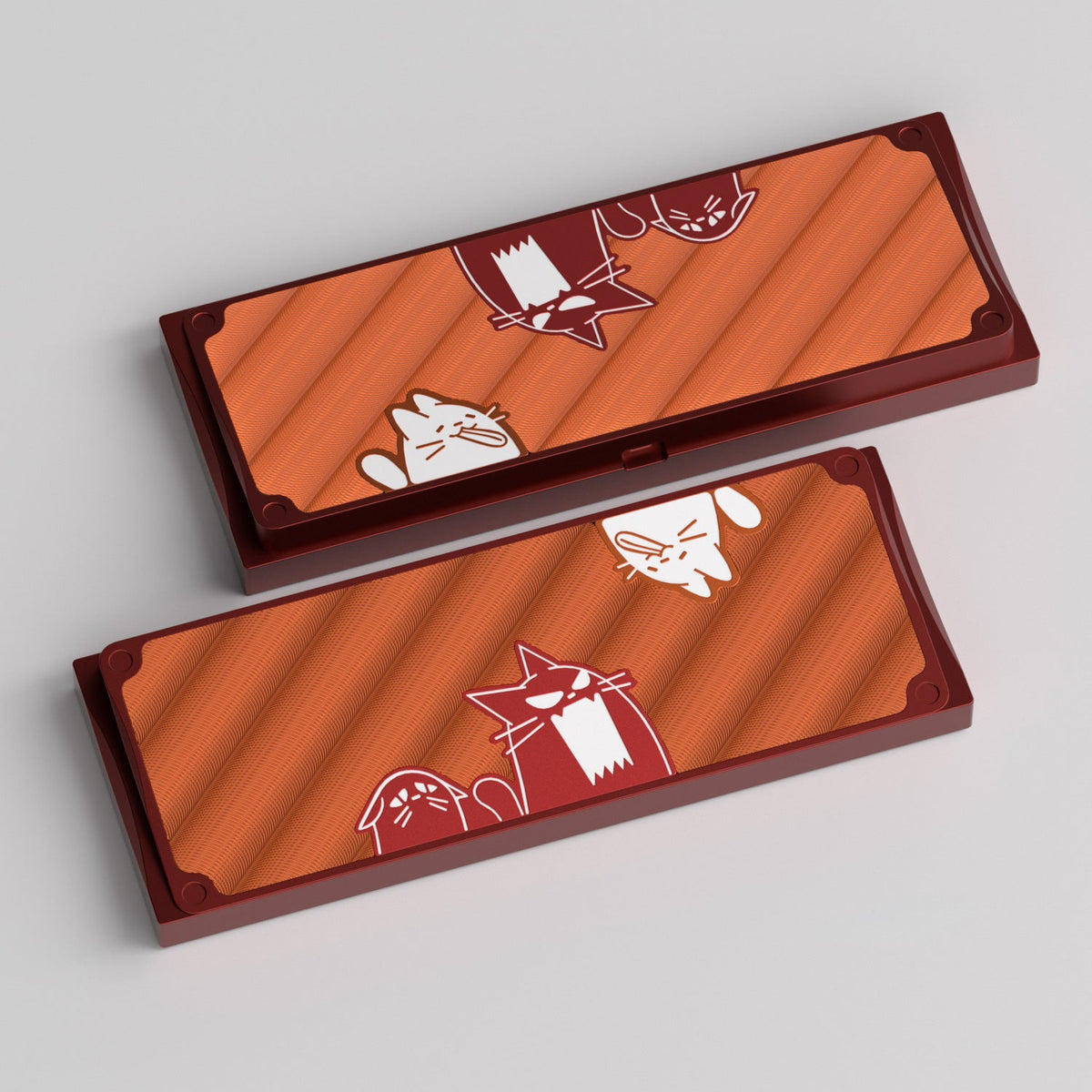

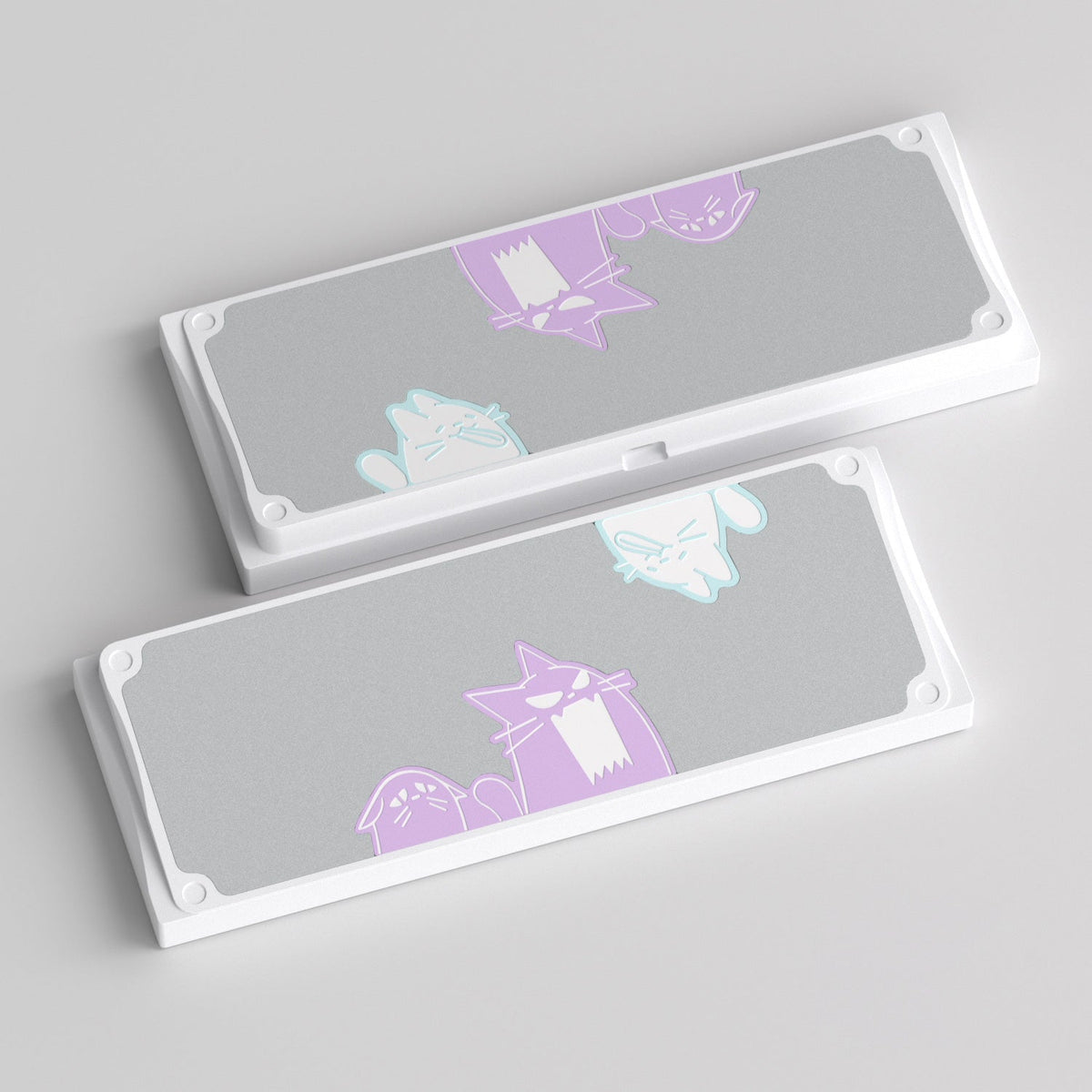

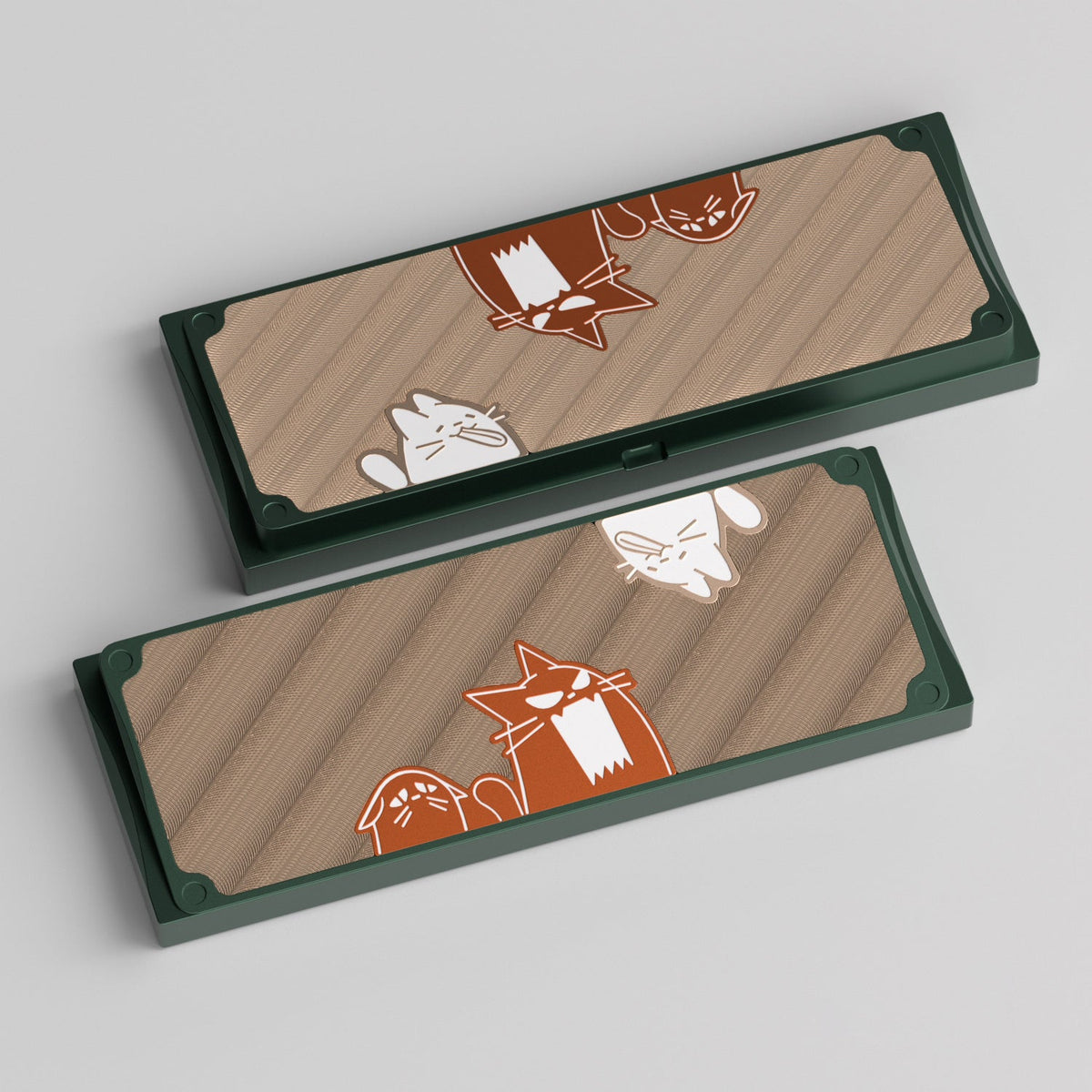

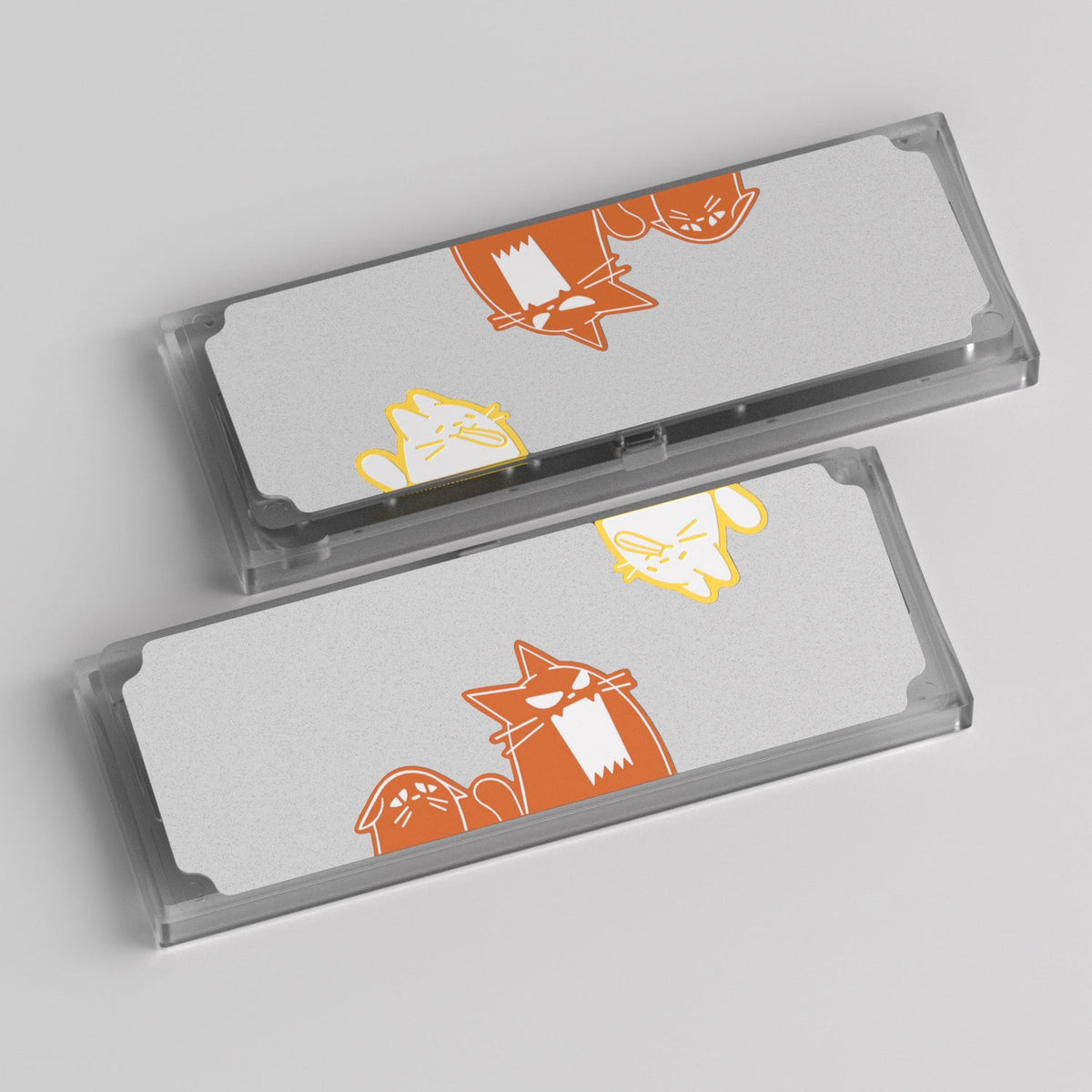

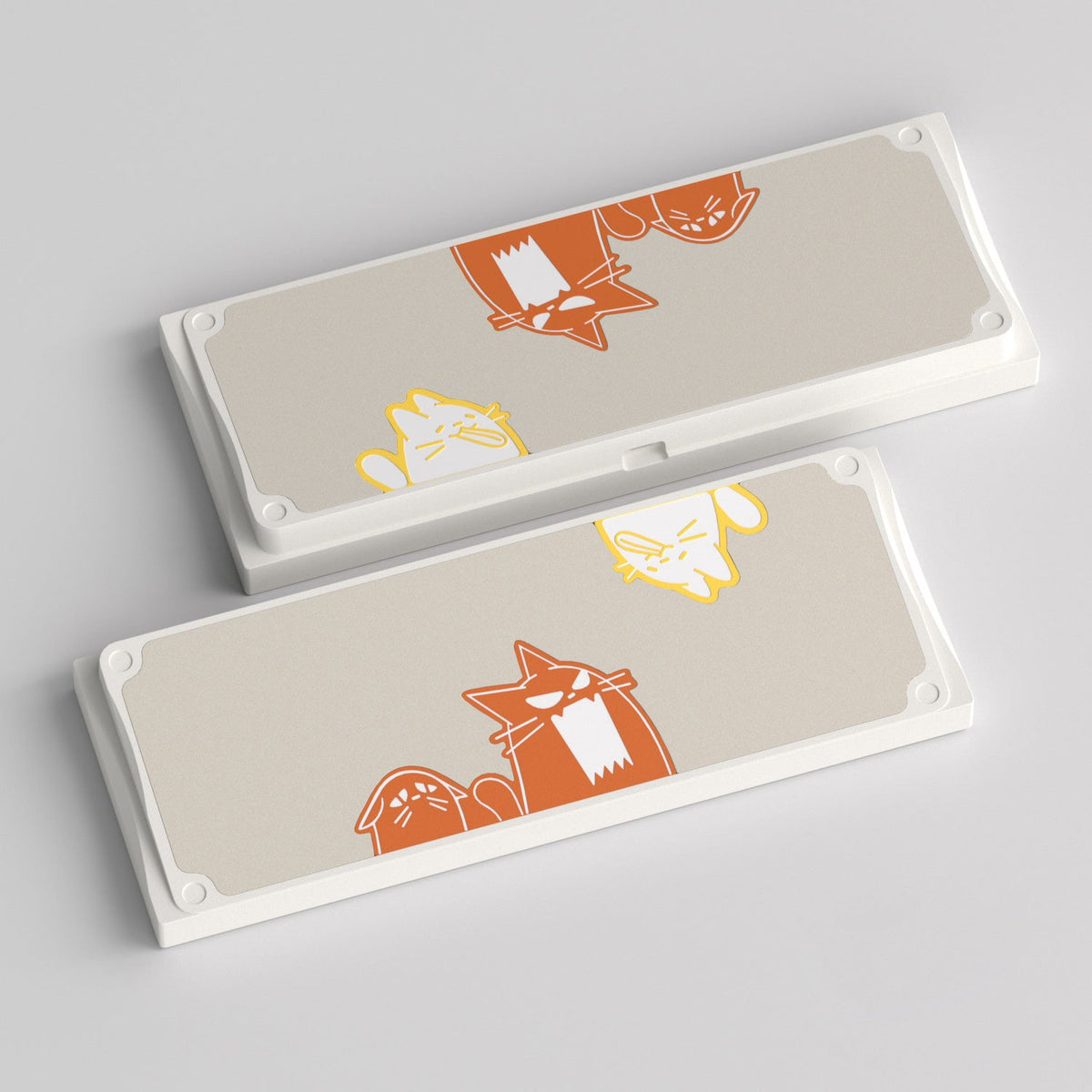

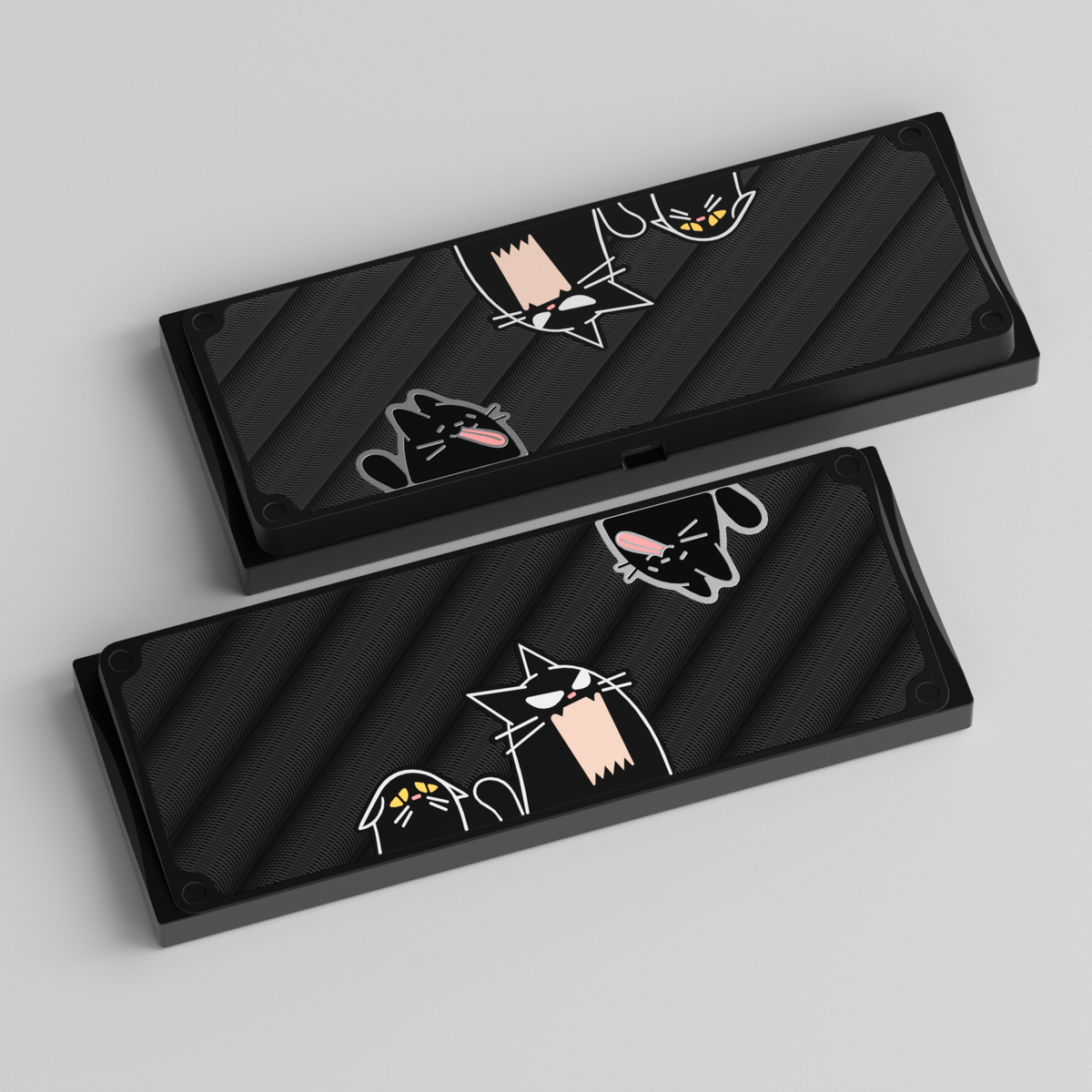

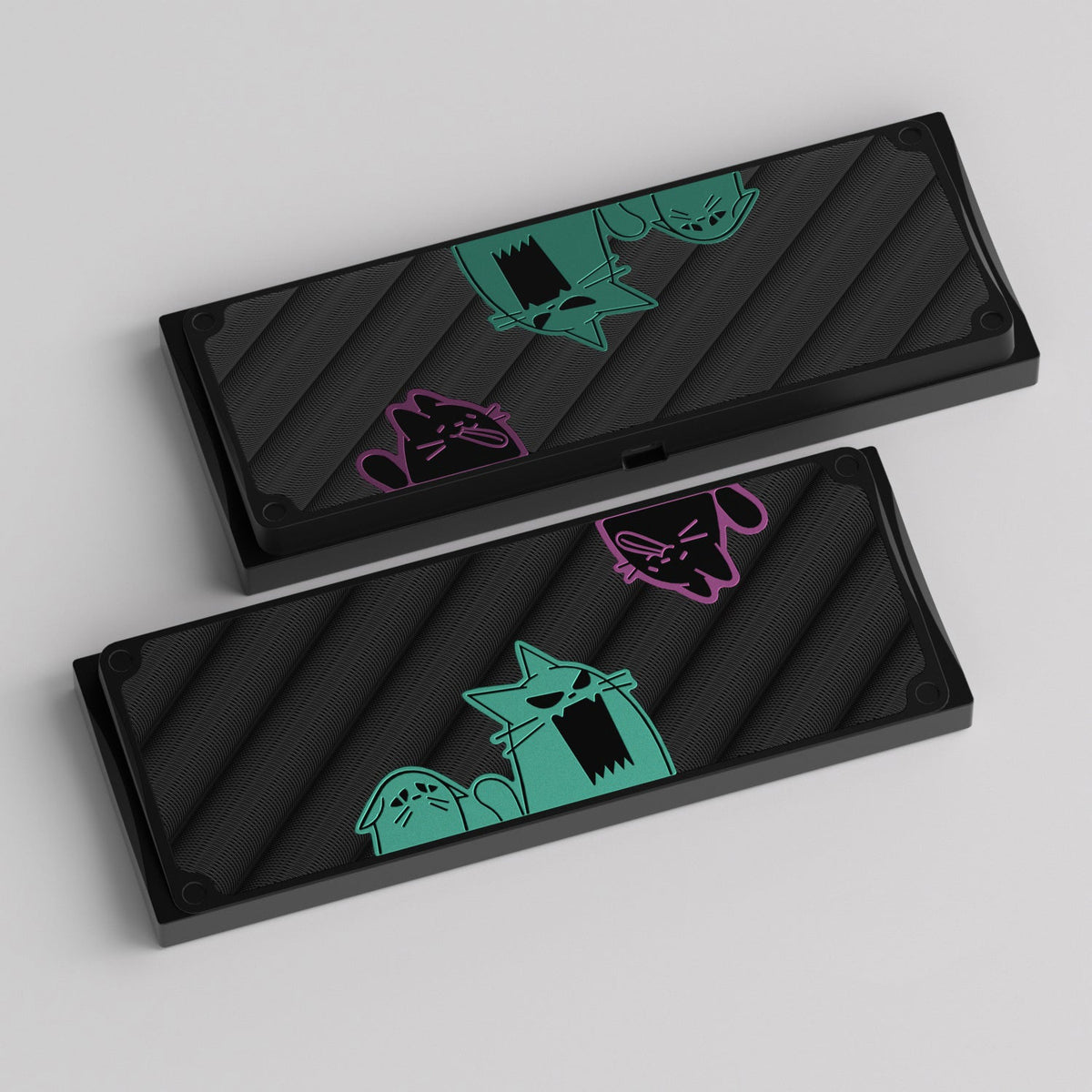

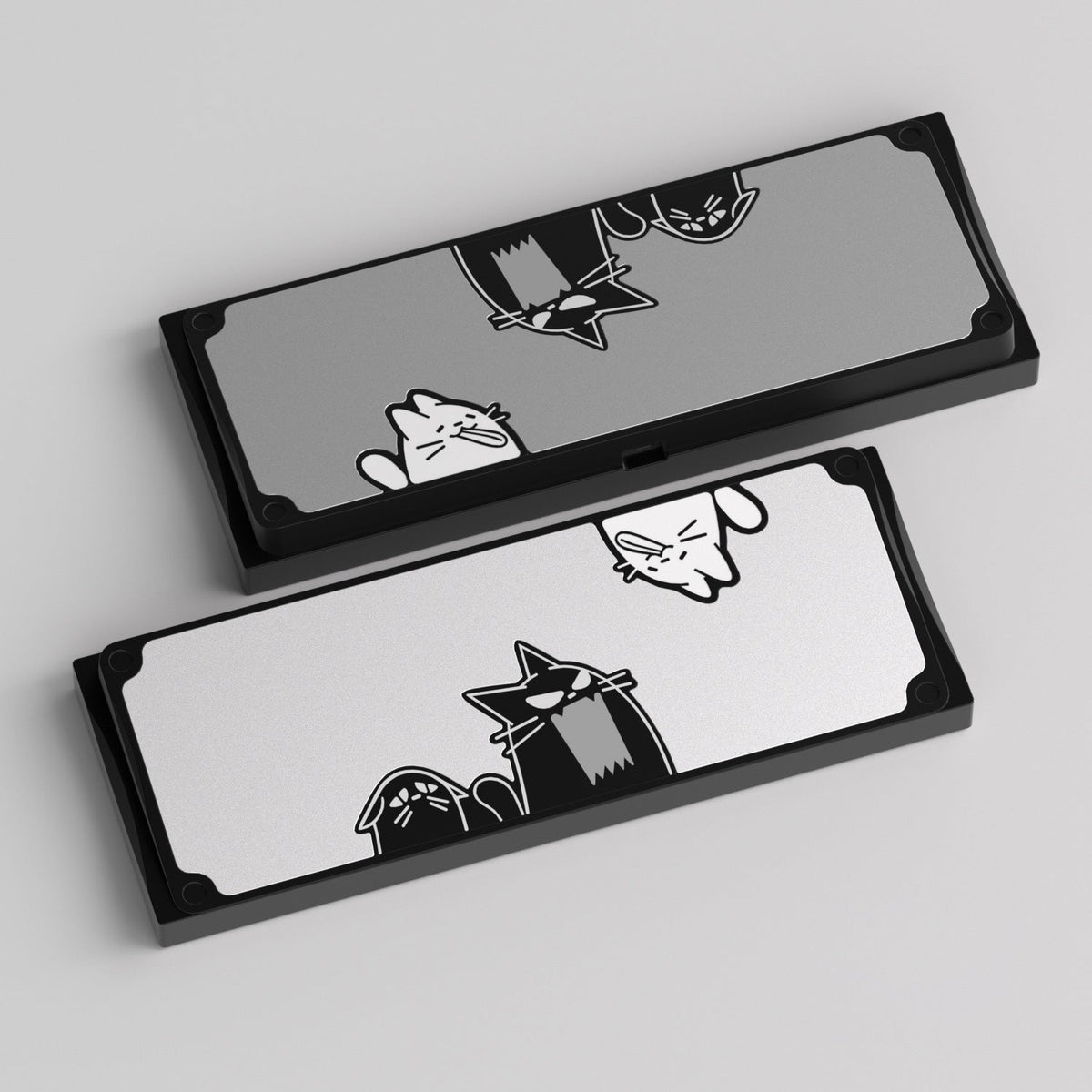

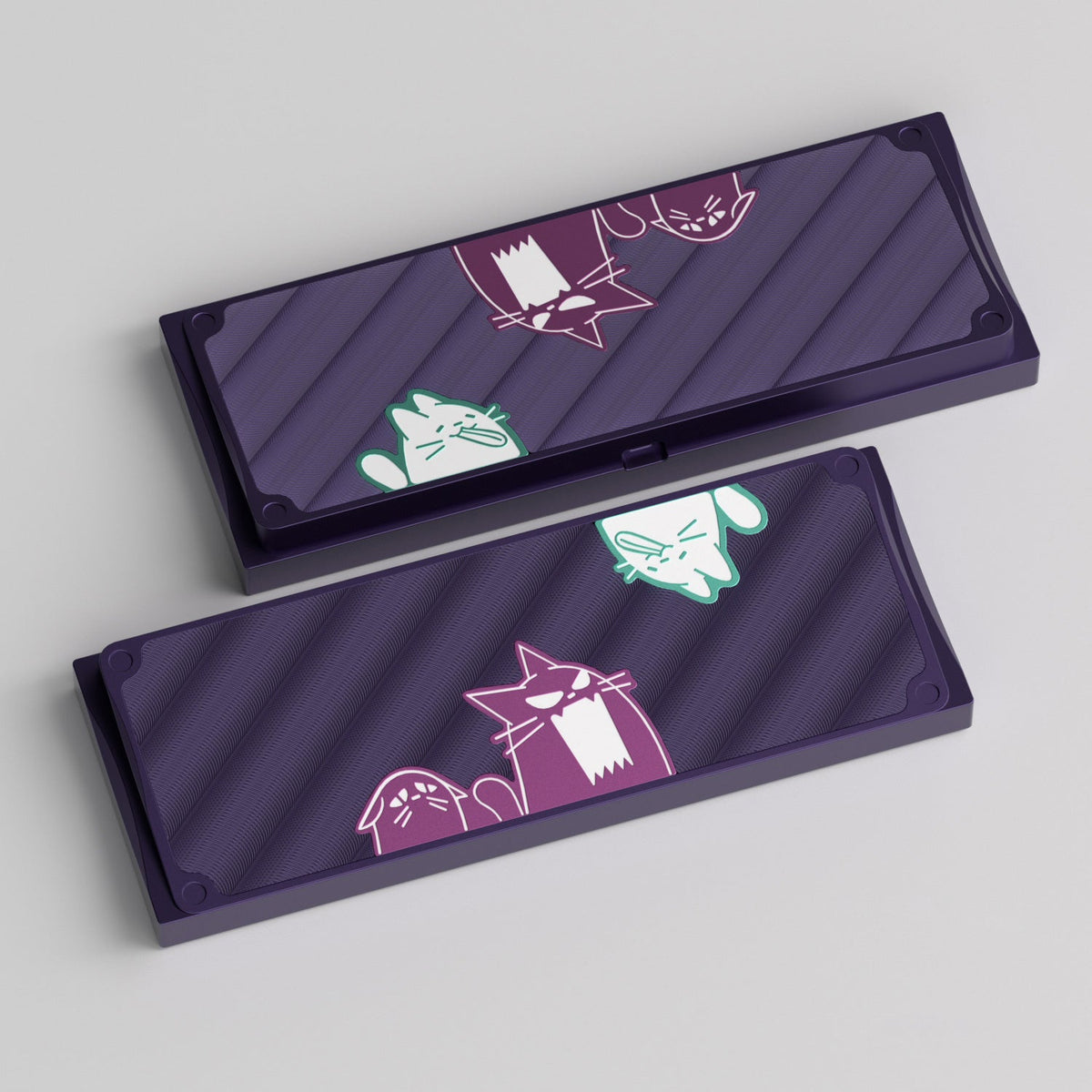

You choose the case, backplate and both cat artwork pieces separately in the configurator: 11 case colours including acrylic, 12 backplates, 10 colours for the big cat and 12 for the small cat. The photos show prototypes of some combinations.







09 · Dimensions
Compact with 7°
297.22 × 111.33 mm
19.65 mm front · 32.31 mm back
7°

10 · Good to know
Paint-filled artwork
The base coat is sprayed on before the artwork is filled with paint. Small irregularities in that coat can stay visible as tiny pits afterwards. Variations like these are normal for paint-filled artwork:

Tiny pits
Small dips in the sprayed base coat.

Dark specks
Occasionally visible in the fill paint.

Paint overflow
Slightly over the edge of the recess.
11 · Who is it for?
Who is the Cat60 for?
For 60% fans who care about details
You want a compact board that doesn't look like a standard Tofu – with hidden screws, soft curves and artwork you combine yourself.
For HE swappers
You have a Wooting 60HE or another GH60-compatible HE PCB and want a new case for it.
The Cat60 is a barebone kit: you'll need switches, keycaps and stabilizers on top – find matching ones under stabilizers. More compact boards are in our 60% keyboards.
